2.3 Name plate

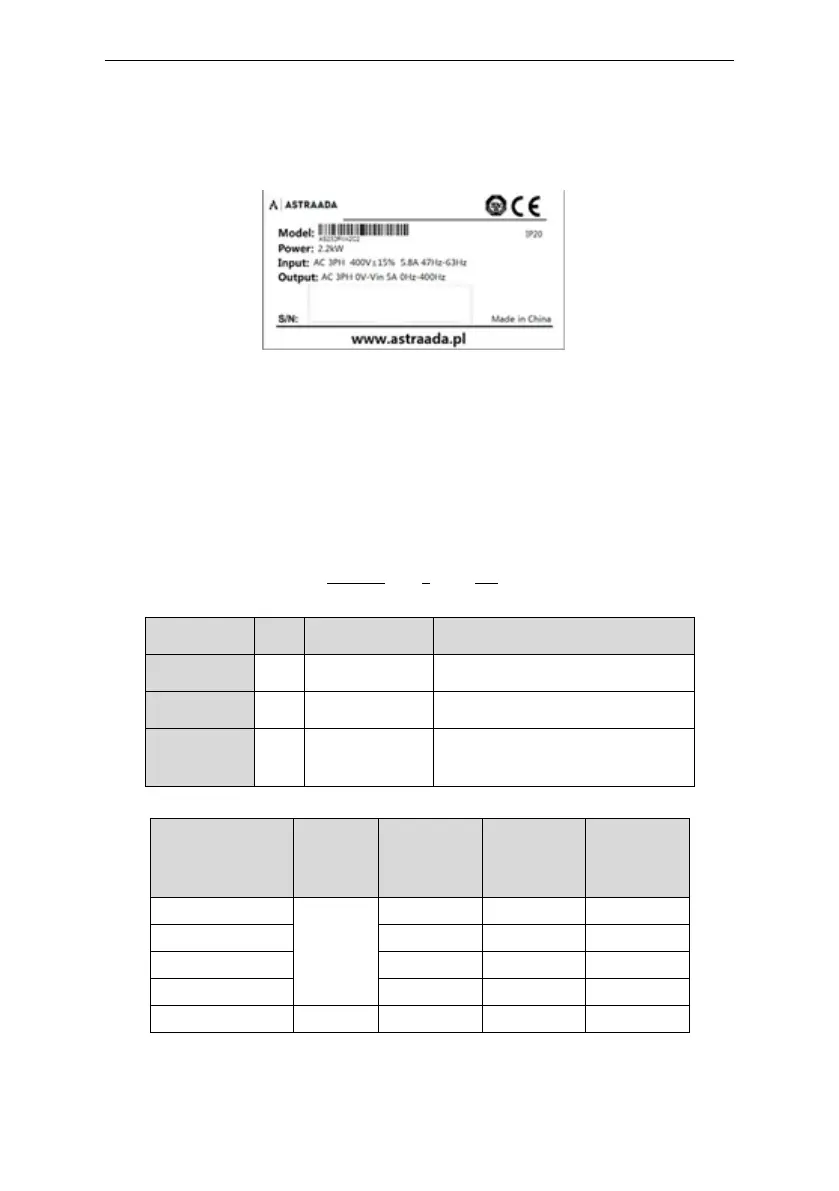

Figure 2-1 Name plate
Note: This is the example for the standard products. And the CE/TUV/IP20 will be marked according
to the actual.
2.4 Type designation key
The type designation contains information on the inverter. The user can find the type designation on
the type designation label attached to the inverter or the simple name plate.
AS24DRV 4 2C2
① ② ③
Figure 2-2 Product type
Key
No.
Detailed
description
Detailed content
Product
abbreviation
①
Product
abbreviation
Astraada AS24DRV
AS24DRV is short for Astraada DRV-24
Voltage
degree
②
Voltage degree
2: AC 1PH 220V(-15%)~240V(+10%)
4: AC 3PH 380V(-15%)~440V(+10%)
Rated power
③
Power range +
Load type
2C2— 2.2kW
2.5 Rated specifications
Model
Voltage
degree
Rated
output
power(kW)
Rated input
current(A)
Rated output
current(A)
AS24DRV20C4
Single phase
230V
0.4
6.5
2.5
AS24DRV20C7
0.75
9.3
4.2
AS24DRV21C5
1.5
15.7
7.5
AS24DRV22C2
2.2
24
10
AS24DRV40C7
Three phase
0.75
3.4
2.5
