Astraada DRV-24 User Manual

DRV-24 frequency inverters Product Overview
10
Model
Voltage
degree
Rated
output
power(kW)
Rated input
current(A)
Rated output
current(A)
AS24DRV41C5
400V
1.5
5.0
4.2
AS24DRV42C2
2.2
5.8
5.5
AS24DRV44C0
4
13.5
9.5
AS24DRV45C5
5.5
19.5
14
AS24DRV47C5
7.5
25
18.5
AS24DRV4011
11
32
25
AS24DRV4015
15
40
32
AS24DRV4018
18.5
47
38
AS24DRV4022
22
51
45
AS24DRV4030
30
70
60
AS24DRV4037
37
80
75
AS24DRV4045
45
98
92
AS24DRV4055
55
128
115
AS24DRV4075
75
139
150
AS24DRV4090
90
168
180
AS24DRV4110
110
201
215

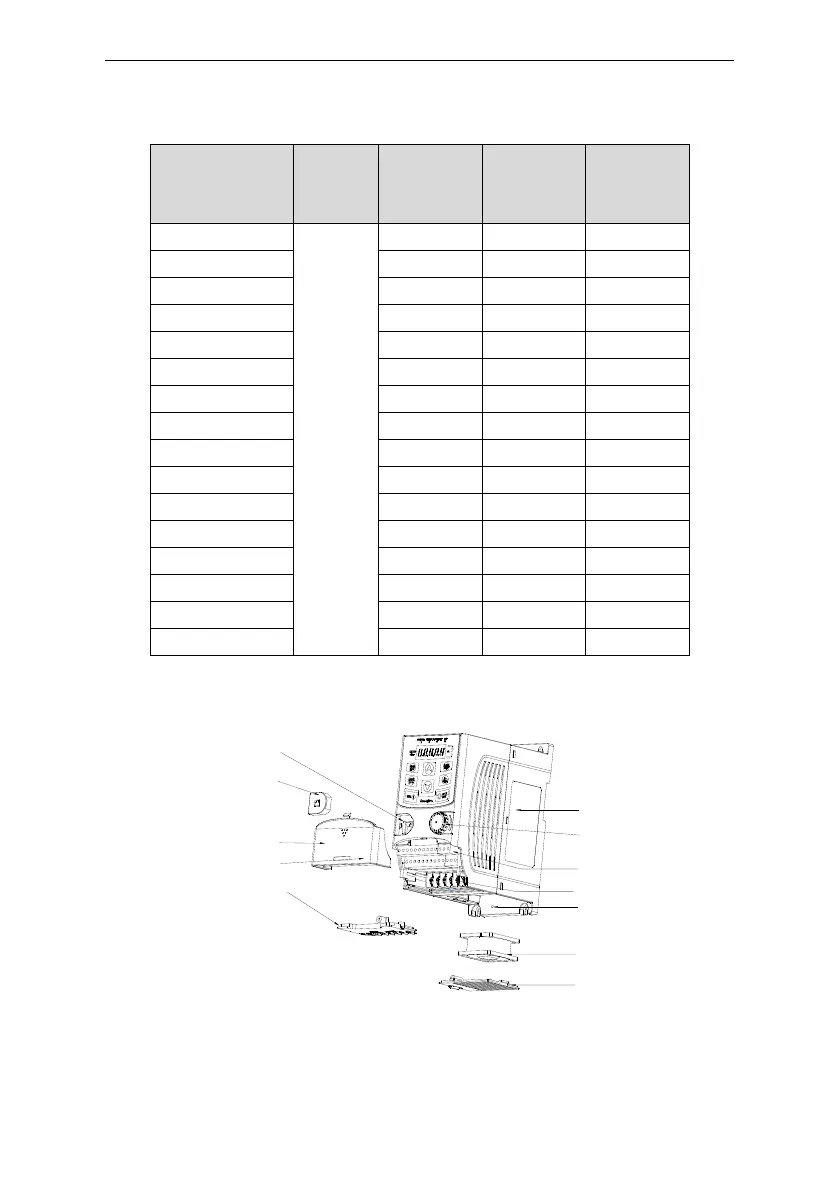

2.6 Structure diagram
Below is the layout figure of the inverter (Three phase 400V, ≤2.2kW) (take the inverter of 0.75kW
as the example).
6
12
8
10
7
3
2
5
1
9
11
4
Figure 2-3 Product structure (Three phase 400V, ≤2.2kW)
