S I G N A T U R E
29

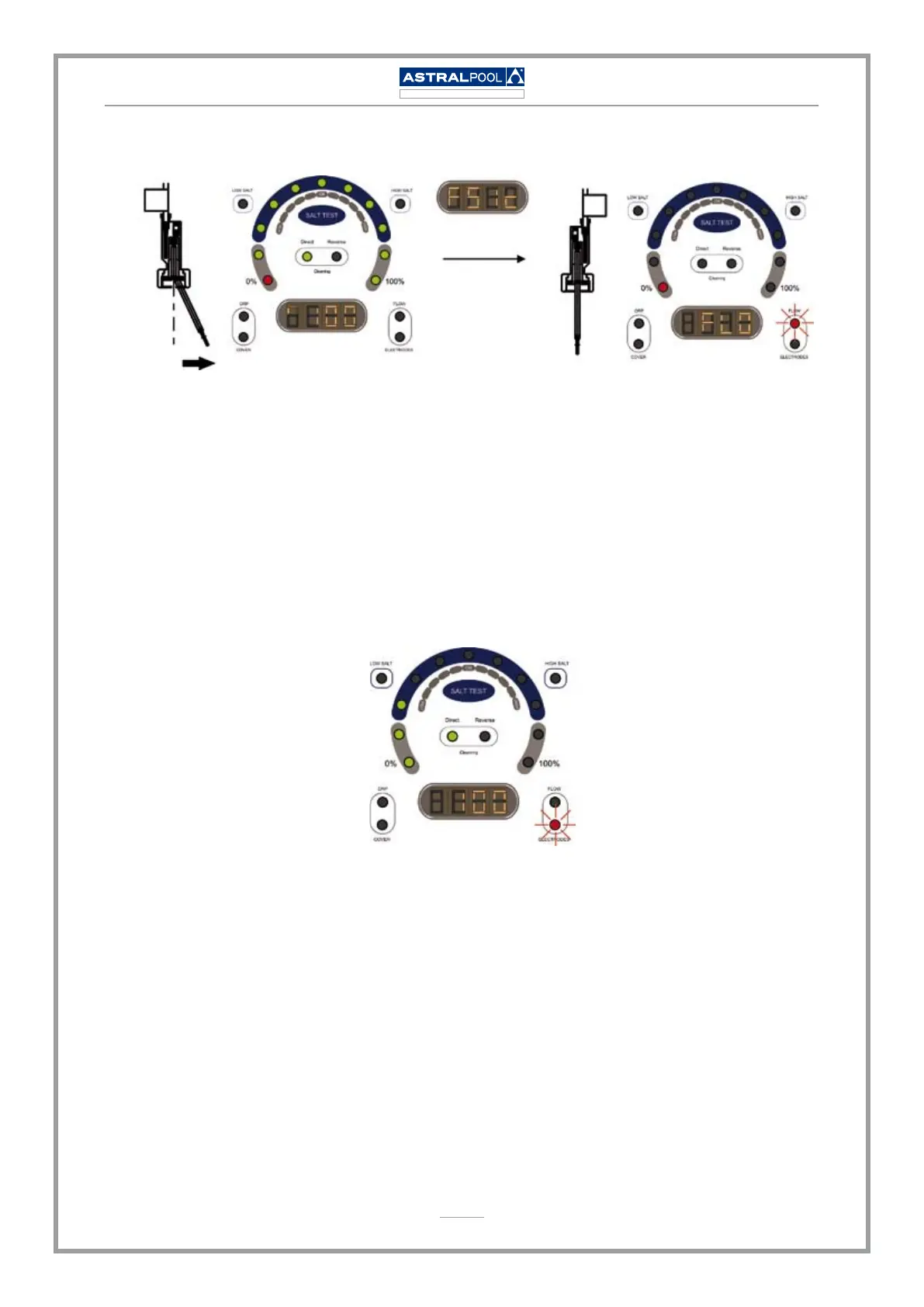

FLOW
Congured
(see sec. 7.6.7)
1. Activated ow detector (contact closed). System running. 2. Flow detector at rest (contact open). System off.
ELECTRODES
The AstralPool Chlore Elite system has a light indicating malfunction of the electrolysis cell
electrodes [13]. This usually occurs at the end of the electrodes’ useful life, when they lose
their power. However, although this is a self-cleaning system, this malfunction could also be
due to excessive scaling on the electrodes when the system operates with hard water with
a high pH value.
PH / ORP OUT OF RANGE
The integrated pH/ORP control system has two ALARM lights which come on whenever a
pH value of less than 6.5 “LOW” [23] or more than 8.5 “HIGH” [16] is detected, or ORP falls
outside the 650 mV “LOW” [25] - 850 mV “HIGH” [21] range. When the regulator detects
an active pH alarm, it opens the control output of the dosage pump (pH).
•
•
