Astralux 9300A - Height of Presser Foot

6-4 Height of presser foot

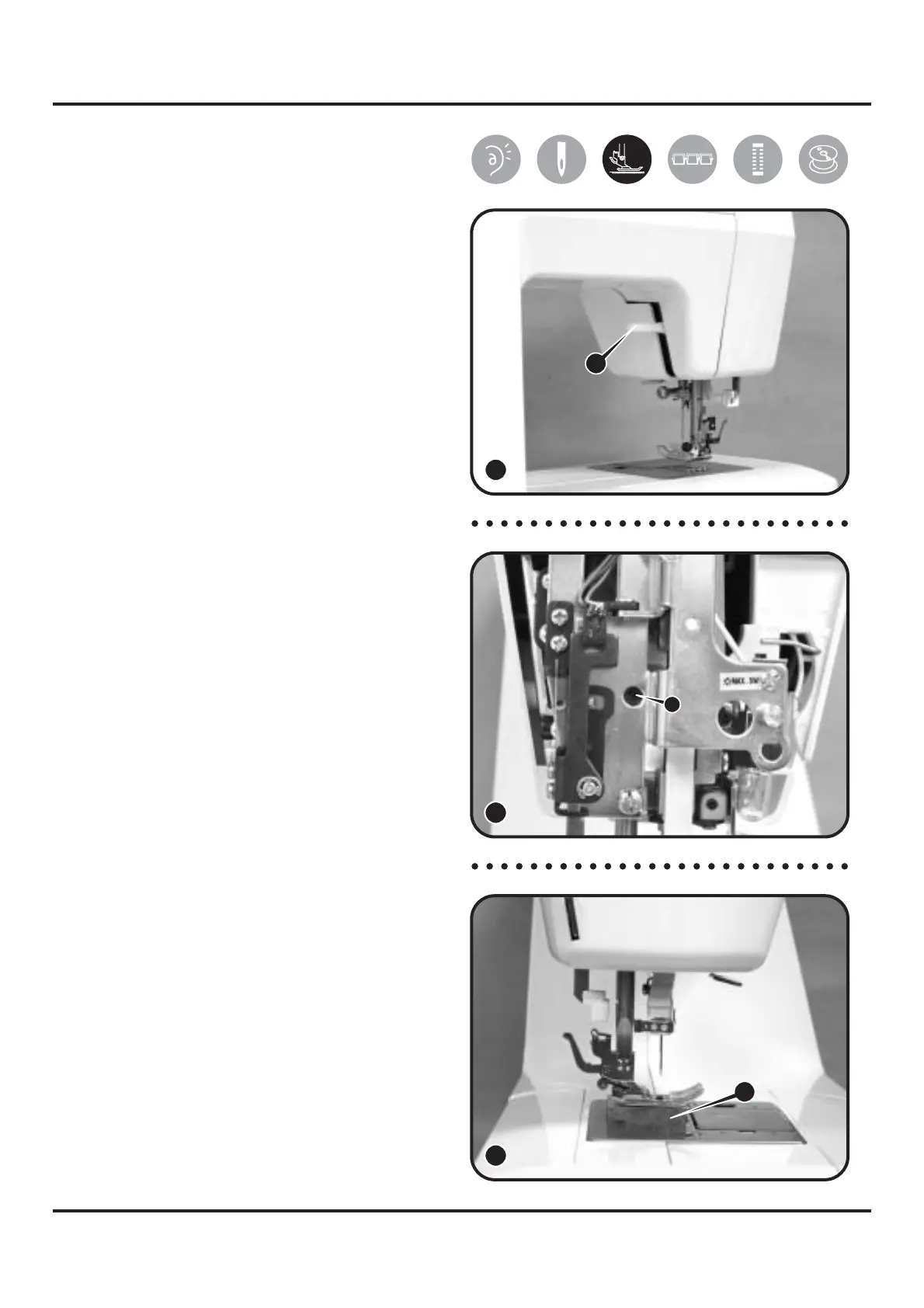

1) Remove face plate and lift up presser
bar lifter lever (A). (1)
2) Loosen screw (a) of presser bar bracket.
(2)
3) Place gauge (B) (6.0~6.2mm) on top of
needle plate. (3)
4) Pull down presser bar lifter lever so
bottom of presser foot and top surface
of gauge would meet.
5) Secure tightly screw (a).
6) The correct setting of gauge should be
6.0~6.2mm.
B
a
A
12
1
2
3
