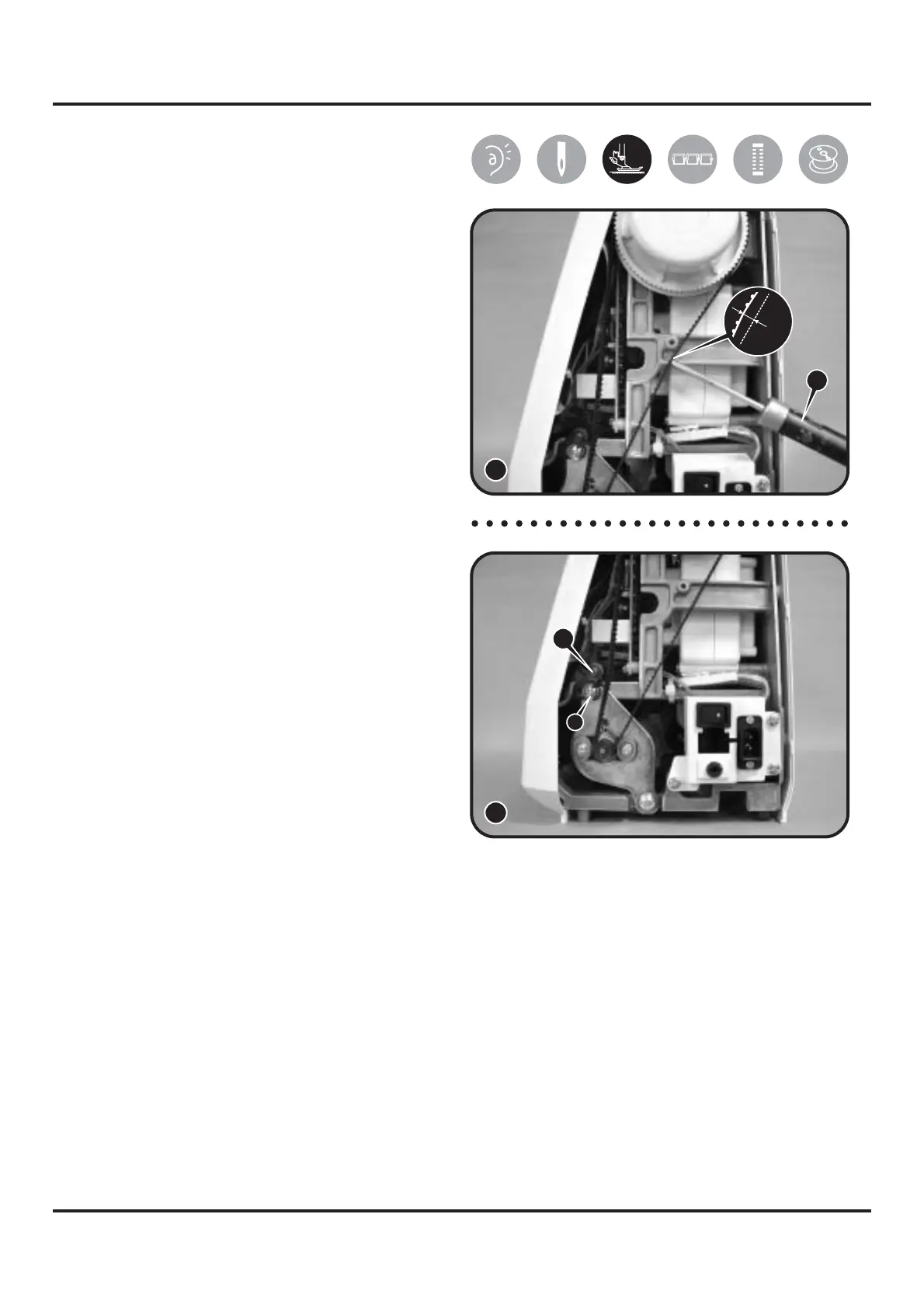

6-19 Motor belt tension
1) Remove back cover and test tension of
motor belt using belt tension gauge (A).
Its standard measurement should be
100g. (1)
2) Adjusting the belt adjusting plate (B) to
regulate the improper belt's tension. The
way to adjust is as following:
Loosen the screw (a) of adjusting plate
(B), and then move it to right, the belt
will become tighter; move it to left, it will
become more loosen. (2)
Tighten screws (a) after confirming the
proper belt tension.
A
27
4m/m
B
1
2
