Astralux 9300A - Belt Cover; Free Arm Cover; Free Arm Foot Bush

p
Back cover
8
l
Free arm foot bush
7
j
Free arm cover
6
i
Belt cover
5

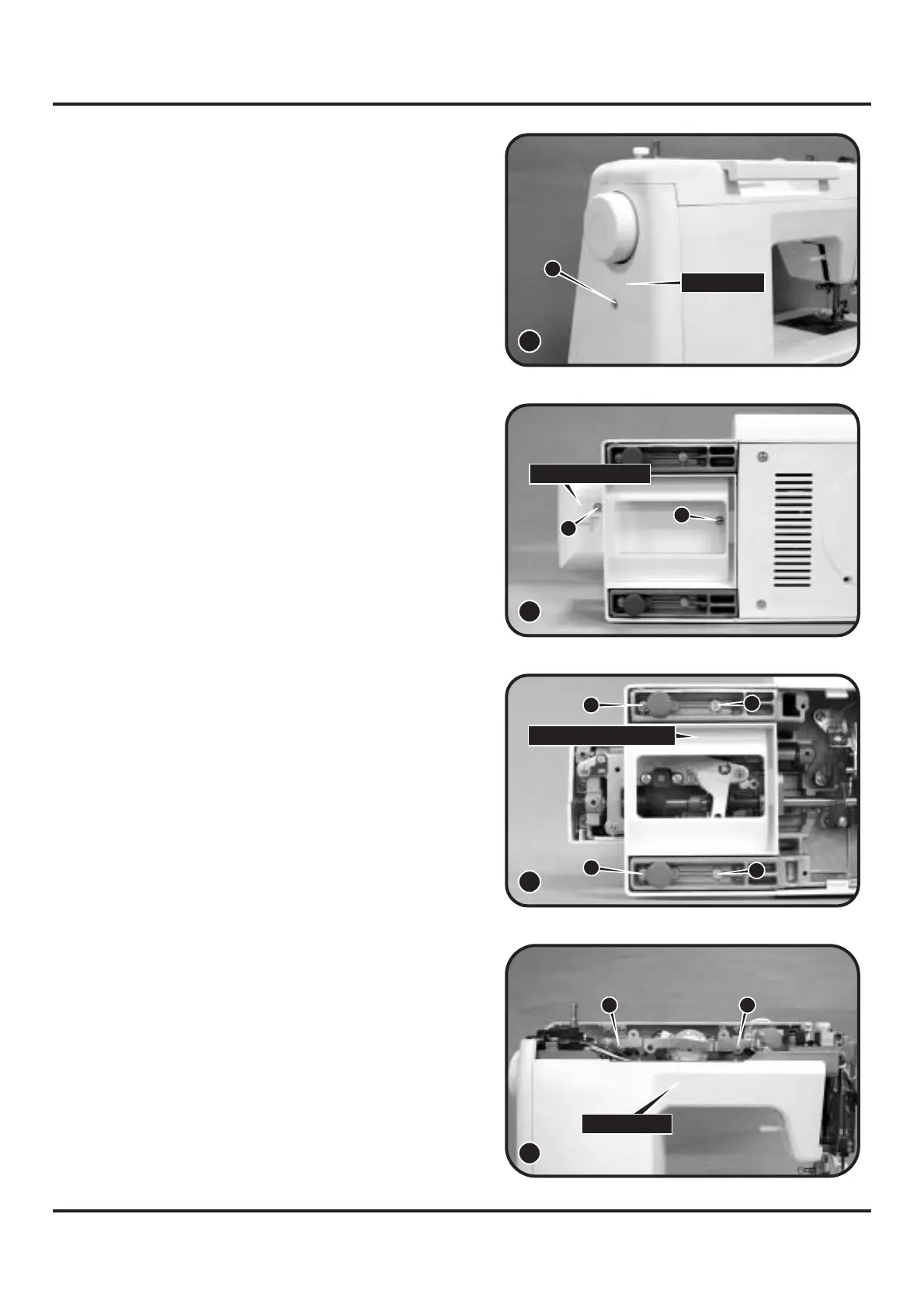

5-5 Belt cover
- Remove screw (i) and remove belt cover. (5)
5-6 Free arm cover
Remove 2 screws (j, k) and remove the free
arm cover. (6)
5-7 Free arm foot bush
Remove 4 screws (l, m, n, o) and remove the
free arm foot bush. (7)
7
5-8 Front cover
- Remove face plate, arm top cover, sewing
box complete, cord reel cover, belt cover, and
free arm cover and free arm foot bush first.
- Lift handle and remove 2 screws (p, q). (8)
k
m
n
o
q
