C
B
A
D
1
2

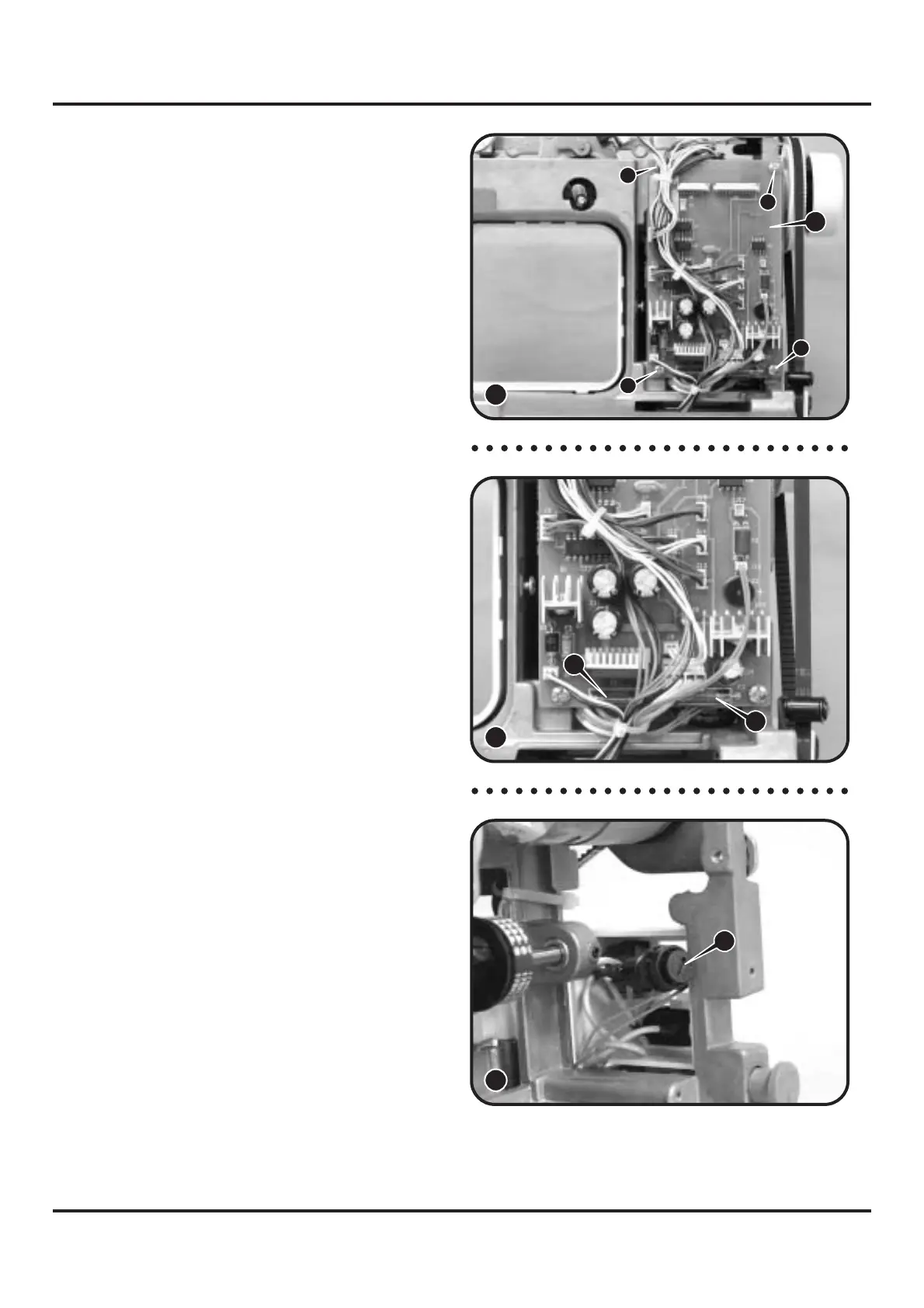

6-23 Replace the fuse
Replacement of 9300A1:
Replacement of 9300A2:
1) Remove the front cover.
2) Remove the circuit board (A) by
dismount the 4 screws (a, b, c, d) of the
circuit board and cord. (1)
3) Flux the tin point of fuses (B, C) which
are behind the circuit board, and replace
the fuses (B, C). (2)
4) Finishing the replacement, and just
follow the anti-steps to re-assemble the
parts.
1) Remove the front cover.
2) Take out the fuse set (D) which next to
the switch receptacle ass'y, open the top
cover, and then you can see the fuses.
(3)
3) Replace the fuses, and follow the anti-
steps to re-assemble the parts.
USA version: 3A (left), 1A (right)
European version: 3A (left), 1A (right)
USA version: 1A
European version: 0.5A
31
3
a
b
c
d
