Astralux 9300A - Feed-Dog Height

6-15 Feed-dog height

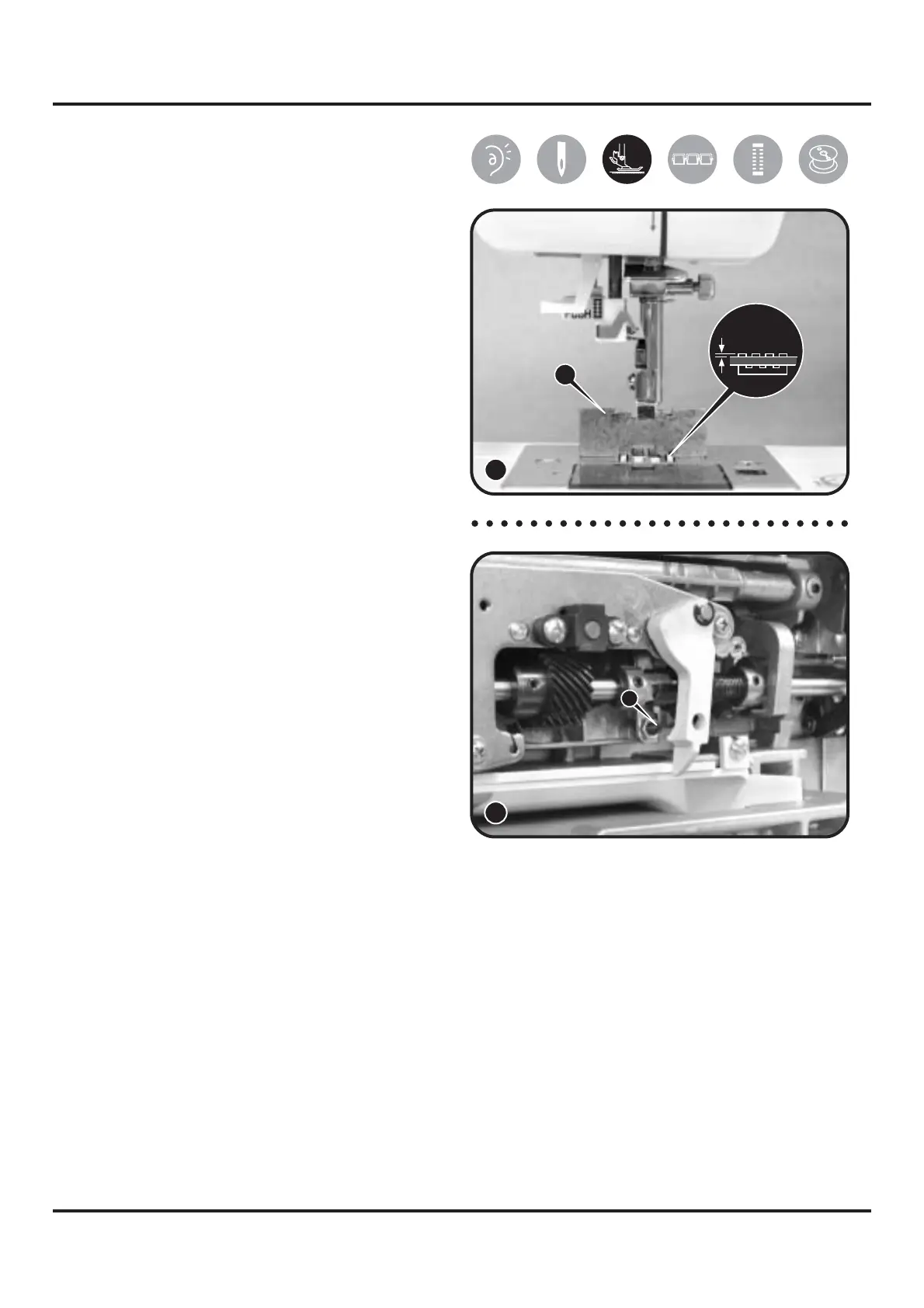

1) Remove free arm cover and lift needle
to its highest position.
2) Remove presser foot.
3) Place setting gauge (A) (0.9~1.05mm)
on needle plate. The feed dog height
then can be checked. (1)
4) Press reverse button. At the correct
height (0.9mm), the feed-dog will be
moved freely forward and backward.
5) Turn screw (a) of feed rock crank
clockwise / counter-clockwise to adjust
height of the feed-dog between
0.9~1.05mm. (2)
Clockwise = raise the feed dog
Counter-clockwise = lower the feed dog
a
A
0.9~1.05mm
