Astralux 9300A - 5 Removing Methods of External Parts; Face Plate; Arm Top Cover; Sewing Table Complete

5-4 Cord reel cover
- Lay down machine. Remove 1 cushion
rubbers (d).
- Remove 4 screws (e, f, g, h). (4)
- Remove cord reel cover.
e
f
g
d
Cord reel cover
4
Sewing table complete
3

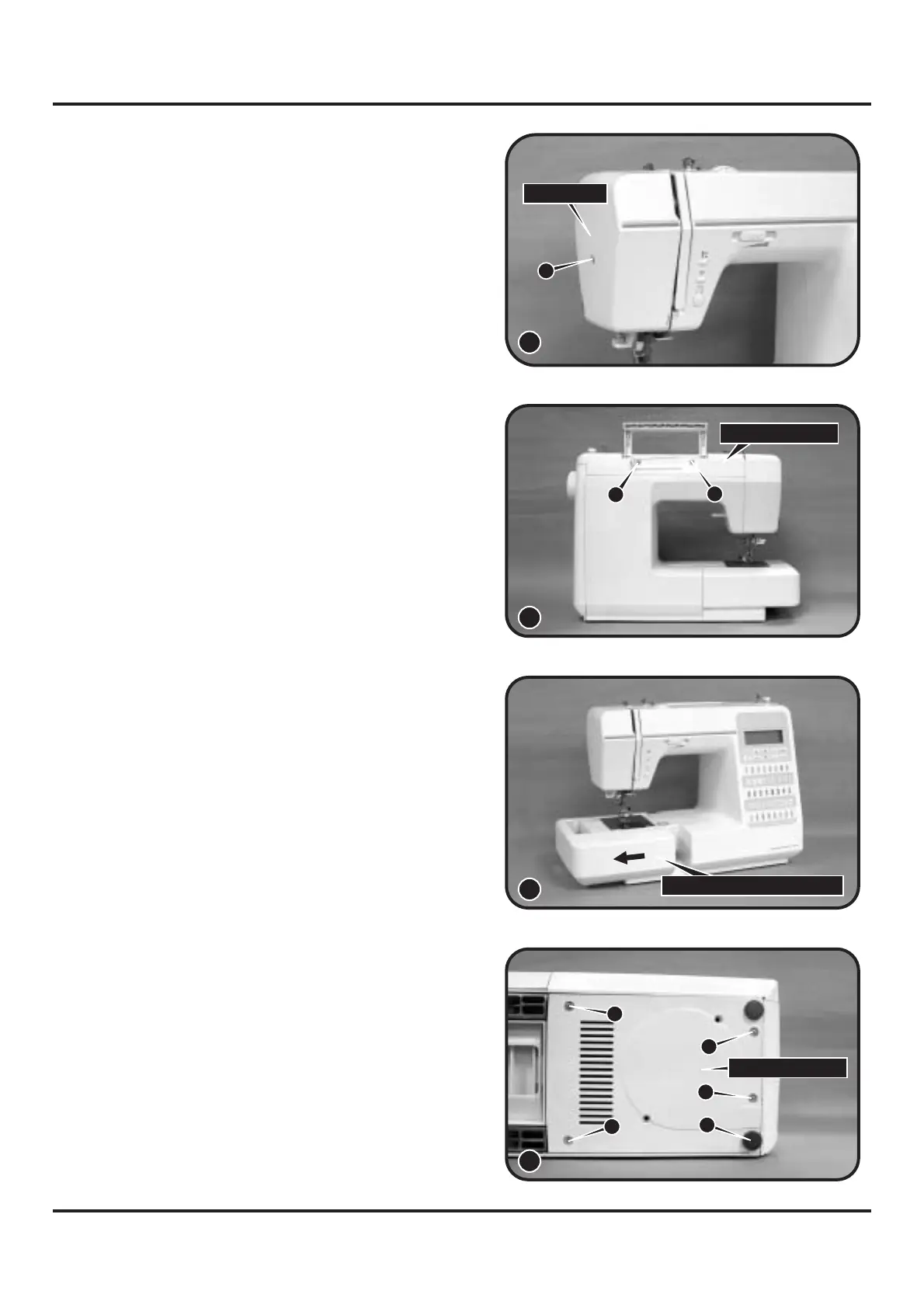

5-1 Face plate
Remove screw (a) and remove the face plate.
(1)
5-2 Arm top cover
Remove 2 screws (b, c) and remove the arm
top cover. (2)
5-3 Sewing table complete
Keep the snap-in sewing table horizontal, and
pull it in the direction of the arrow. (3)
5. Removing methods of external parts
a
Face plate
6
1
b
c
Arm top cover
2
h
