Astralux 9300A - Distance-Needle-Hook

a
A

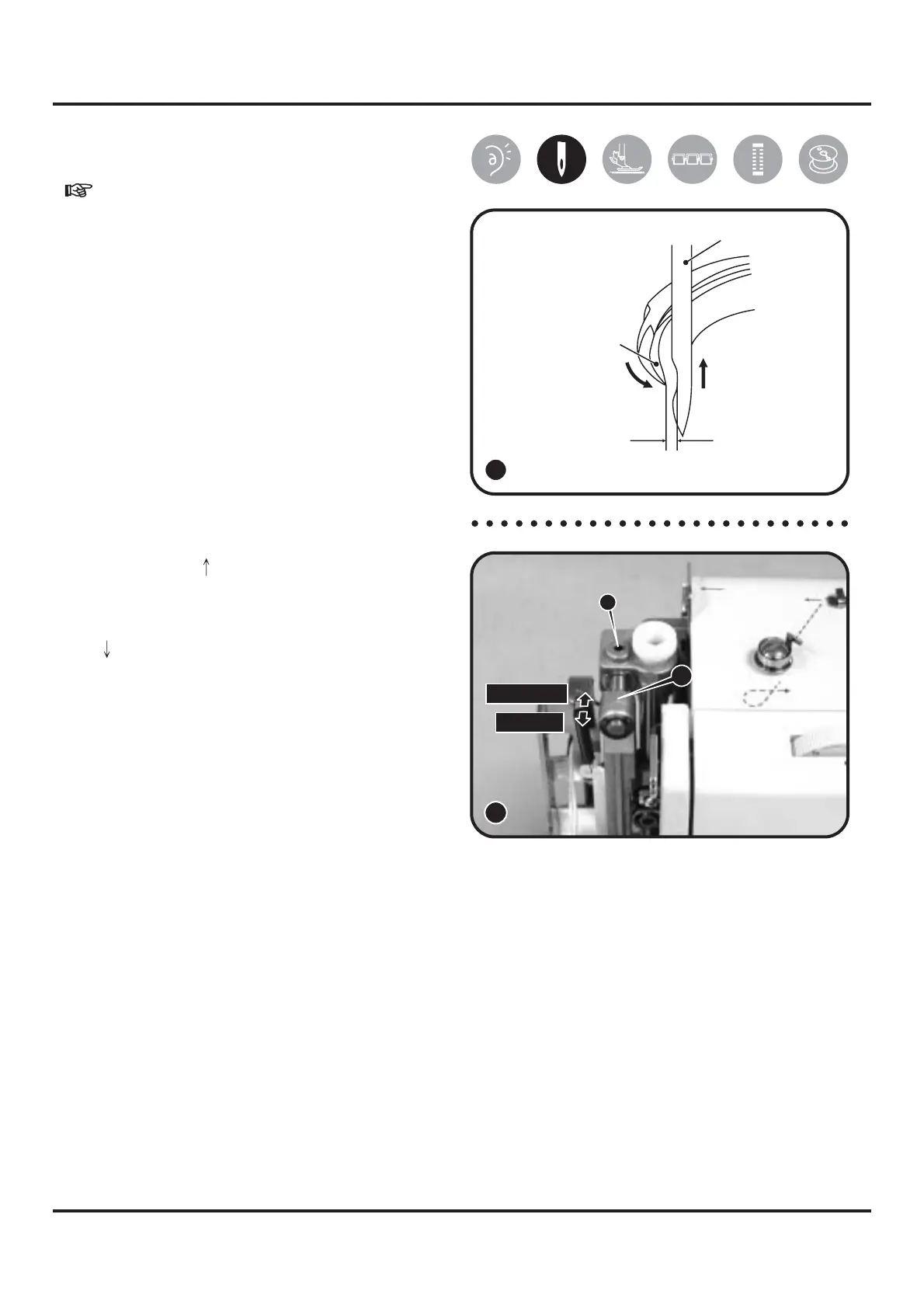

6-12 Distance-needle-hook
- Choose patterns #5, zigzag 7 mm.
1) Remove face plate and needle plate.
2) Take off the shuttle hook.
3) Set the needle towards the lowest point
of right side and lift it, make sure if
space between needle and the tip of the
shuttle hook holder should be
0.05~0.1mm. (1)
4) If the space is incorrect:
Loosen the screw (a) of the needle bar
supporter.
Push the needle bar supporter (A)
backward ( ), and the space will
become larger.
Push the needle bar supporter toward
( ), and the space will become smaller.
(2)
20
1
2
0.05~0.1 mm
The tip of hook
Needle
forward
backward
