Turn Rate Indication
The EFI depicts turn rate as a magenta bar along the top of the
compass card. Fixed reference marks indicate left/right 1.5°/second
and 3°/second turns. The bar is capped with an arrowhead when the
turn rate exceeds 4.5°/second left or right. Turn Rate is displayed on
either the Full or Arc compass card. When there is zero or no turn rate
the indication is removed from the display.

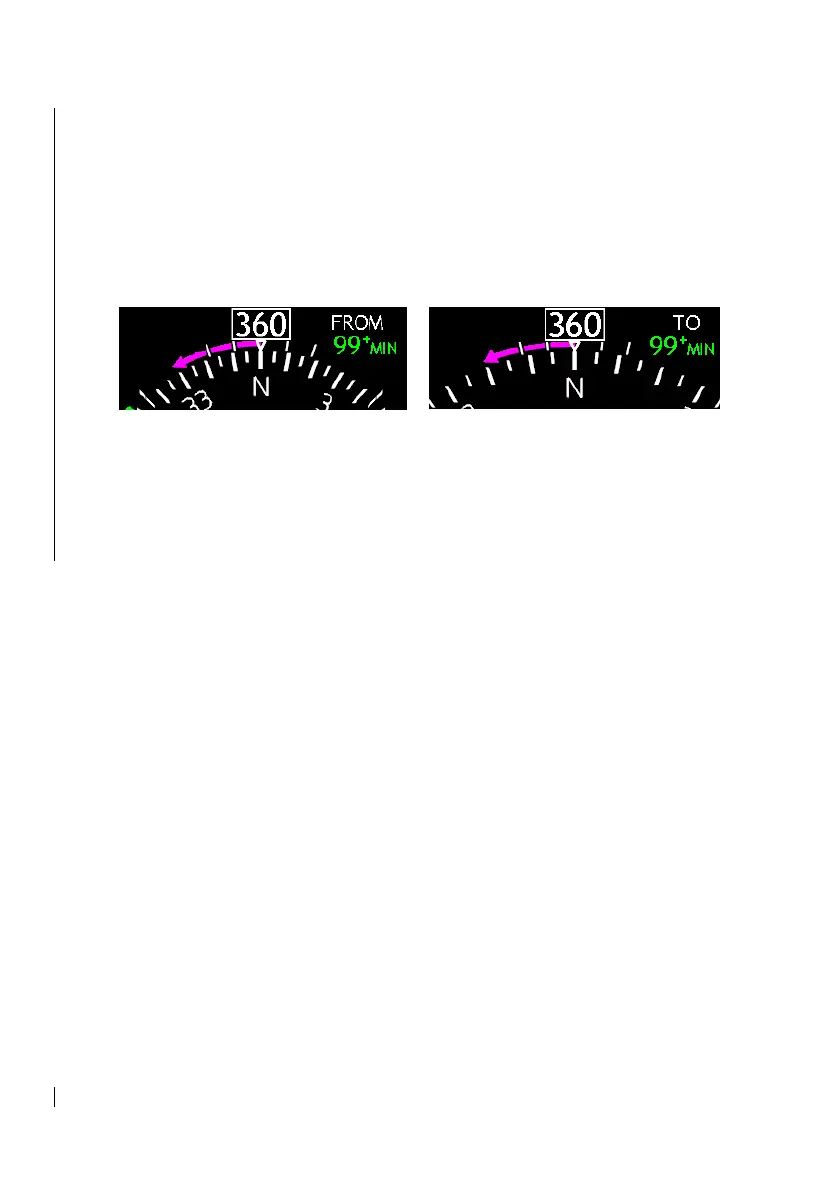

Figure 3-2 Turn Rate Indication
The display of the Turn Rate Indication is optional with selection “on”
or “off” on the Configuration page.
3.2 HSI Controls
3.2.1 Selecting an Active Navigation Source
The EFI Active Navigation Sources are cycled by pressing the NAV
bezel button. When the key is pressed, the next navigation source will
be displayed. After the last source, the list rolls back to the first
source. A primary navigation source is displayed at all times on the
HSI.
