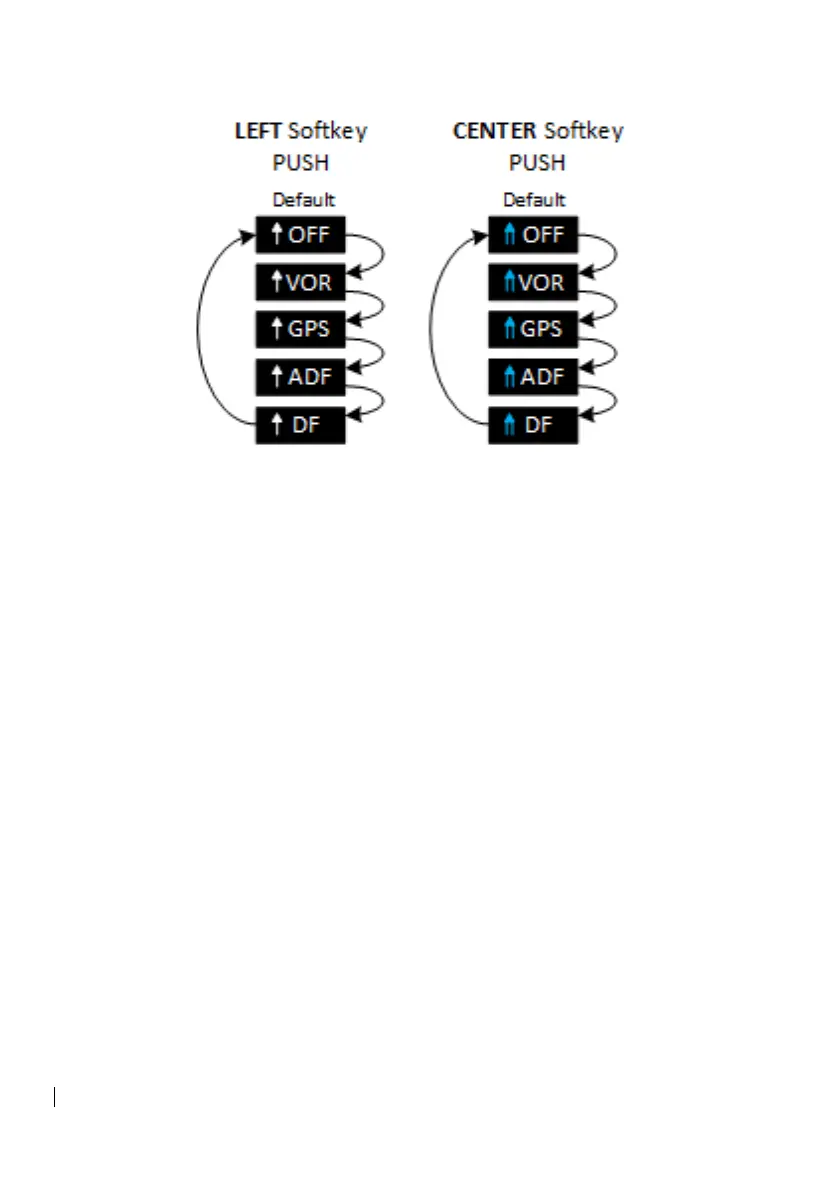

Figure 3-5: Bearing Selections
If the configuration consists of a single VOR or GPS, the second
source will be not be displayed. Likewise, if the system configuration
only has a single ADF, then the DF option will not be displayed.
3.2.4 Full Compass or Arc Mode Selection
The compass card can be changed to depict either a full 360° with the
ownship icon at the center, or an arc view that shows 60° on either
side of the current heading with the ownship icon shifted towards the
bottom.
To Next Page
