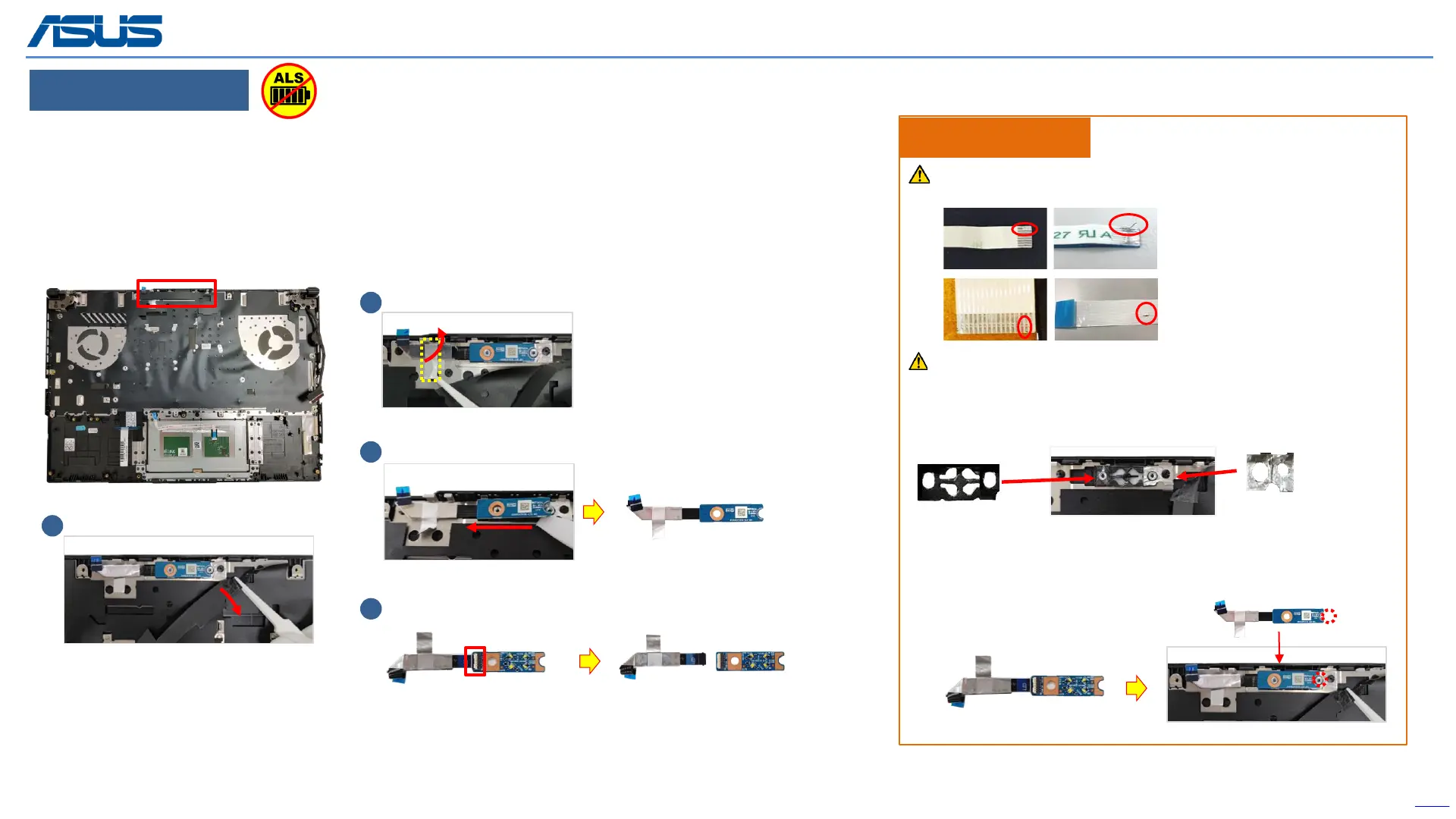

Asus FA617N - Led Board

LED BOARD
Back
26
Disassembly Notice
Release
Step 1 : Flip the (red mark) MYLAR on the LED Module.
Step 2 : Release the gasket of the cable.
Step 3 : Remove the LED Module.
Step 4 : Disconnect the LED FFC.
2
4
Disconnect
1
Remove
3
Assembly Notice
If FFC is damage during disassembly, please replace new one.
Here are some samples of FFC damage:
Step1 :
Paste TOP LED SPONGE *1pc
Step2 :
Paste LED BD AL FOIL *1pc
The TOP LED SPONGE and LED BD AL FOIL are not reusable after the
disassembly LED BOARD, before assembly LED BOARD Module, please
follow the steps below to paste the new TOP LED SPONGE and LED BD
AL FOIL.
Step3 :
Connect the FFC to LED BD then turn
it over to assemble on KB Module.
The device has an Ambient Light Sensor (ALS) for power-off protection Function.
