Asus P8H61-M LX3 PLUS User Manual

華碩 P8H61-M LX3 系列主板用戶手冊 1-5
1.5 主板概述
當您安裝主板到電腦機箱內時，請確認主板與機箱大小相適應。
請確認在安裝或移除主板前先拔除電源線，否則可能導致主板元器件損壞
和對用戶的人身傷害。
1.5.1 主板的擺放方向
當您安裝主板到電腦主機機箱內時，務必確認安裝的方向是否正確。主板的外接
插頭的方向應是朝向主機機箱的後方面板，而且您也會發現主機機箱後方面板會有相
對應的預留孔位。
1.5.2 螺絲孔位

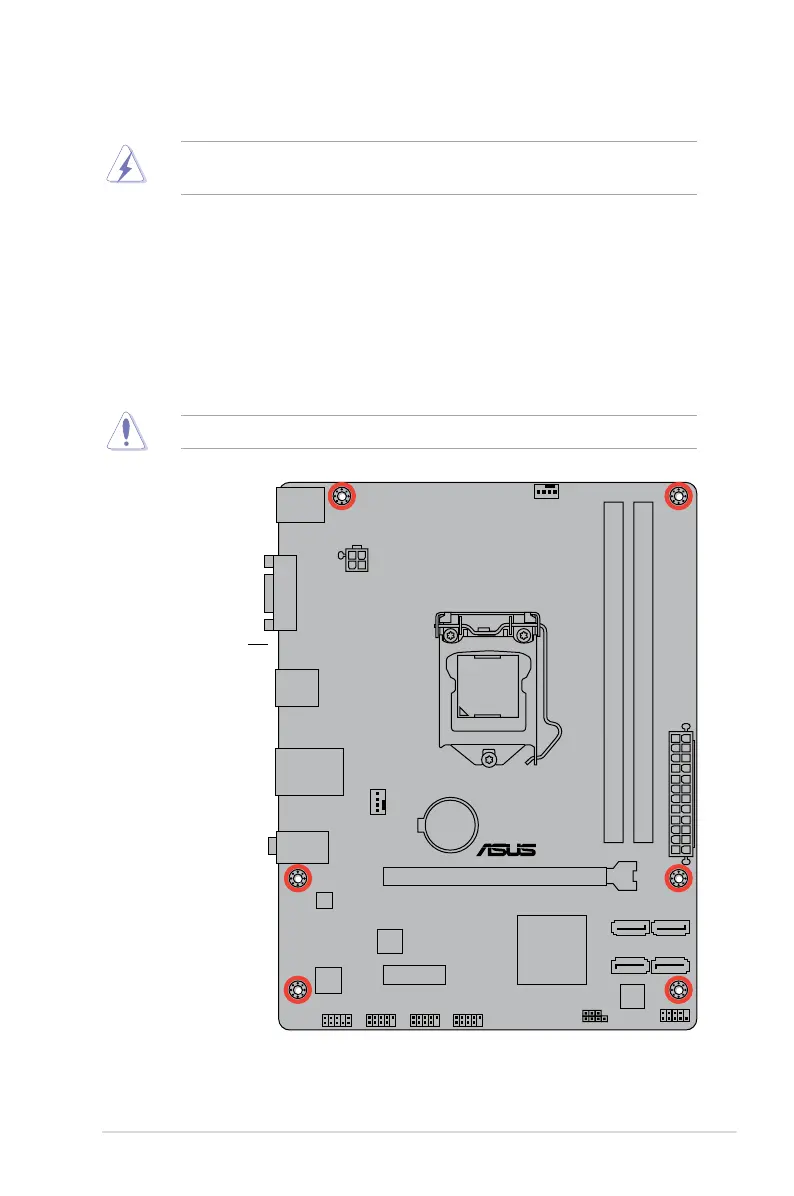

請將下圖所圈選出來的“六”個螺絲孔位對準主機機箱內相對位置的螺絲孔，然
後再一一鎖上螺絲固定主板。
請勿將螺絲鎖得太緊！否則容易導致主板的印刷電路板產生龜裂。
此面朝向電腦主機的後
方面板
P8H61-M LX3 Series

Asus P8H61-M LX3 PLUS Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of SATA II connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	VIA VT1708S
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H61
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Supported storage drive interfaces	SATA II
Maximum resolution	2048 x 1536 pixels
Maximum graphics card memory	1748 MB
Parallel processing technology support	Not supported
PCI Express slots version	2.0
Cables included	SATA
LAN controller	Realtek RTL8111F
Networking features	Gigabit Ethernet
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
BIOS type	UEFI
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	173 mm
Width	226 mm
