華碩 P8H61-M LX3 系列主板用戶手冊 1-19
6. USB 2.0 設備接口 1 和 2：這二組 4-pin 通用串行總線（USB）接口可連接到使
用 USB 2.0/1.1 接口的硬件設備。
7.
USB 2.0 設備接口 3 和 4：這二組 4-pin 通用串行總線（USB）接口可連接到使
用 USB 2.0/1.1 接口的硬件設備。
8.
D-Sub 接口：這組 15-pin 接口可連接 VGA 顯示屏幕或其他 VGA 硬件設備。
9.
PS/2 鍵盤接口：將 PS/2 鍵盤插頭連接到此接口。
1.10.2 內部接口

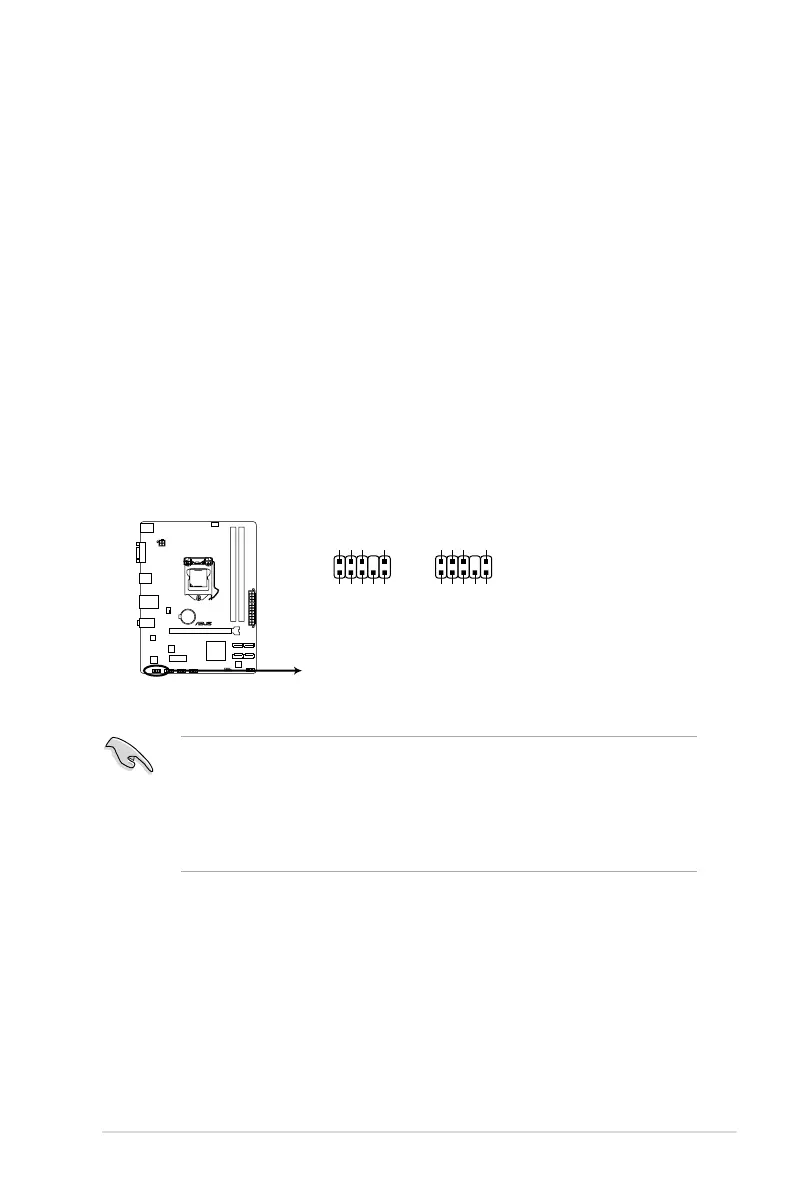

1. 前面板音頻連接排針 (10-1 pin AAFP)
這組音頻外接排針供您連接到前面板的音頻數據線，除了讓您可以輕鬆地通過
主機前面板來控制音頻輸入/輸出等功能，並且支持 AC’97 或 HD Audio 音頻
標準。將前面板音頻輸入/輸出模塊的數據線的一端連接到這個插槽上。
• 建議您將支持高保真（high definition）音頻的前面板音頻模塊連接到這
組排針，如此才能得到高保真音頻的功能。
• 若要將高保真音頻前面板模塊安裝至本接針，請將 BIOS 程序中【Front
Panel Type】項目設置為 [HD Audio]，若要將 AC 97 音頻前面板模塊安
裝至本接針，請將此項目設置為 [AC 97]。請參考“2.5.6 內置設備設置
（Onboard Device Configuration）”部分的說明。
P8H61-M LX3 Series
P8H61-M LX3 Series Front panel audio connector
AAFP
PIN 1
AGND NC SENSE1_RETUR SENSE2_RETUR
PORT1 L
PORT1 R PORT2 R
SENSE_SEND
PORT2 L
HD-audio-compliant
pin definition
PIN 1
AGND NC NC NC
MIC2
MICPWR
Line out_R
NC
Line out_L
Legacy AC’97
compliant definition

Asus P8H61-M LX3 PLUS Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of SATA II connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	VIA VT1708S
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H61
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Supported storage drive interfaces	SATA II
Maximum resolution	2048 x 1536 pixels
Maximum graphics card memory	1748 MB
Parallel processing technology support	Not supported
PCI Express slots version	2.0
Cables included	SATA
LAN controller	Realtek RTL8111F
Networking features	Gigabit Ethernet
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
BIOS type	UEFI
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	173 mm
Width	226 mm
