2-9華碩 P8H61-M LX3 系列主板用戶手冊
高級模式（Advanced Mode）
高級模式（Advanced Mode）為有經驗的終端用戶提供高級的 BIOS 設置項目。

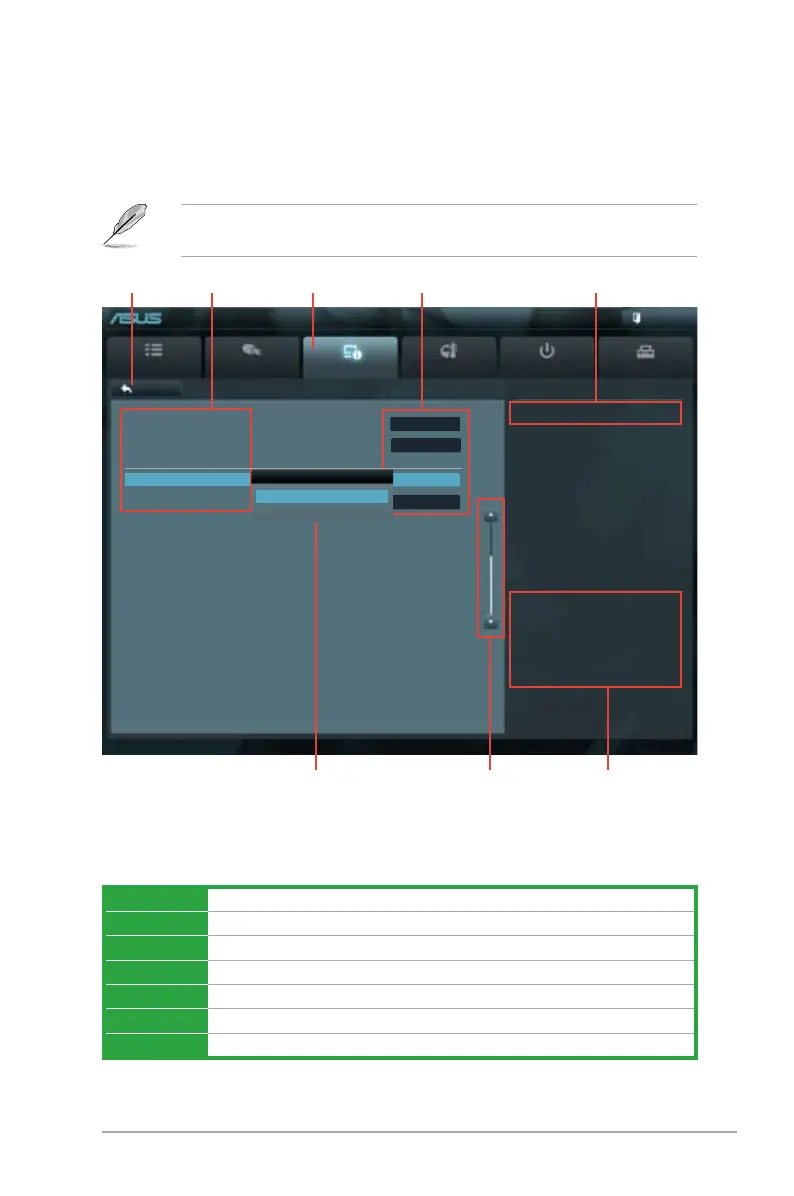

以下畫面顯示了高級模式（Advanced Mode）畫面之一。詳細設置信息請參考以下
部分的說明。
要進入 EZ 模式（EZ Mode），點擊【Exit】按鈕，然後選擇華碩 EZ 模
式（EZ Mode）。
功能表列
BIOS 設置程序最上方各菜單功能說明如下：
Main
本項目提供系統基本設置
Ai Tweaker
本項目用於變更超頻設置
Advanced
本項目提供系統高級功能設置
Monitor
本項目顯示系統溫度、電源狀態，並變更風扇設置settings
Boot
本項目提供系統開啟設置
Tool
本項目提供特殊功能設置
Exit
本項目提供退出 BIOS 設置程序與出廠默認值還原功能
操作功能鍵
在線操作說明
功能表列
設置窗口
菜單項目
滾動條
設置值
返回按鈕
Main
Ai Tweaker
Advanced Monitor Boot Tool
Exit
Version 2.00.1201. Copyright (C) 2011 American Megatrends, Inc.
Enabled/Disabled Realtek LAN
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F5: Optimized Defaults
F10: Save ESC: Exit
Back Advanced\ Onboard Devices Conguration >
EFI BIOS Utility - Advanced Mode
Realtek LAN Controller
Disabled
Enabled
HD Audio Controller
Enabled
Front Panel Type HD
Realtek LAN Controller Enabled
Realtek PXE OPROM Disabled

Asus P8H61-M LX3 PLUS Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of SATA II connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	VIA VT1708S
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H61
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Supported storage drive interfaces	SATA II
Maximum resolution	2048 x 1536 pixels
Maximum graphics card memory	1748 MB
Parallel processing technology support	Not supported
PCI Express slots version	2.0
Cables included	SATA
LAN controller	Realtek RTL8111F
Networking features	Gigabit Ethernet
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
BIOS type	UEFI
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	173 mm
Width	226 mm
