1-12 第一章：產品介紹
1.7 系統內存
1.7.1 概述
本主板配置兩組 DDR3（Double Data Rate，雙倍數據傳輸率）內存插槽。
DDR3 內存條與 DDR2 內存條大小相同，但卡口不同，可防止用戶將其安裝到
DDR2 內存插槽上。DDR3 內存條可提供更高的性能，且耗電量更低。

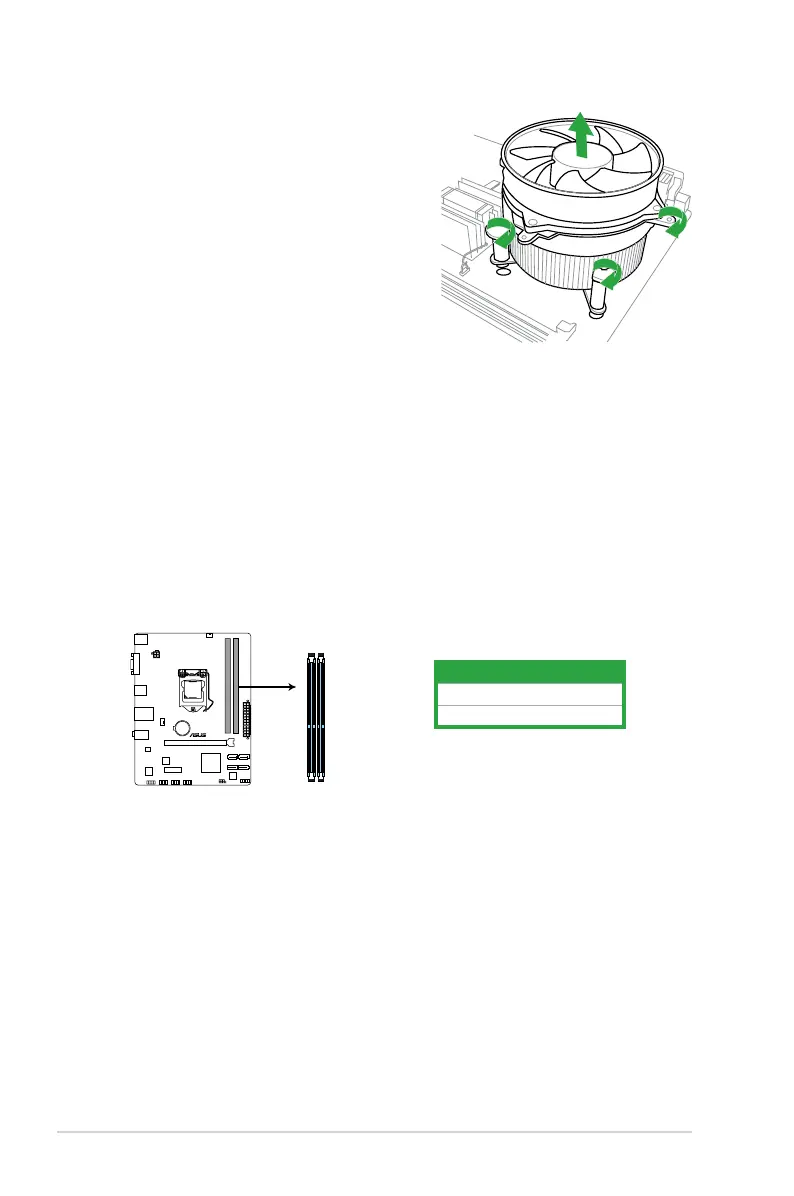

下圖所示為 DDR3 內存插槽在主板上的位置。
4. 接著小心地將散熱器與風扇從主板上抽離。
5. 若要重新安裝，依順時針方向旋緊扣具。
P8H61-M LX3 Series
P8H61-M LX3 Series 240-pin DDR3 DIMM sockets
DIMM_A1 DIMM_B1
通道 插槽
通道 A DIMM_A1
通道 B DIMM_B1

Asus P8H61-M LX3 PLUS Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of SATA II connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	VIA VT1708S
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H61
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Supported storage drive interfaces	SATA II
Maximum resolution	2048 x 1536 pixels
Maximum graphics card memory	1748 MB
Parallel processing technology support	Not supported
PCI Express slots version	2.0
Cables included	SATA
LAN controller	Realtek RTL8111F
Networking features	Gigabit Ethernet
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
BIOS type	UEFI
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	173 mm
Width	226 mm
