Asus P8H61-M LX3 PLUS User Manual

1-6 第一章：產品介紹

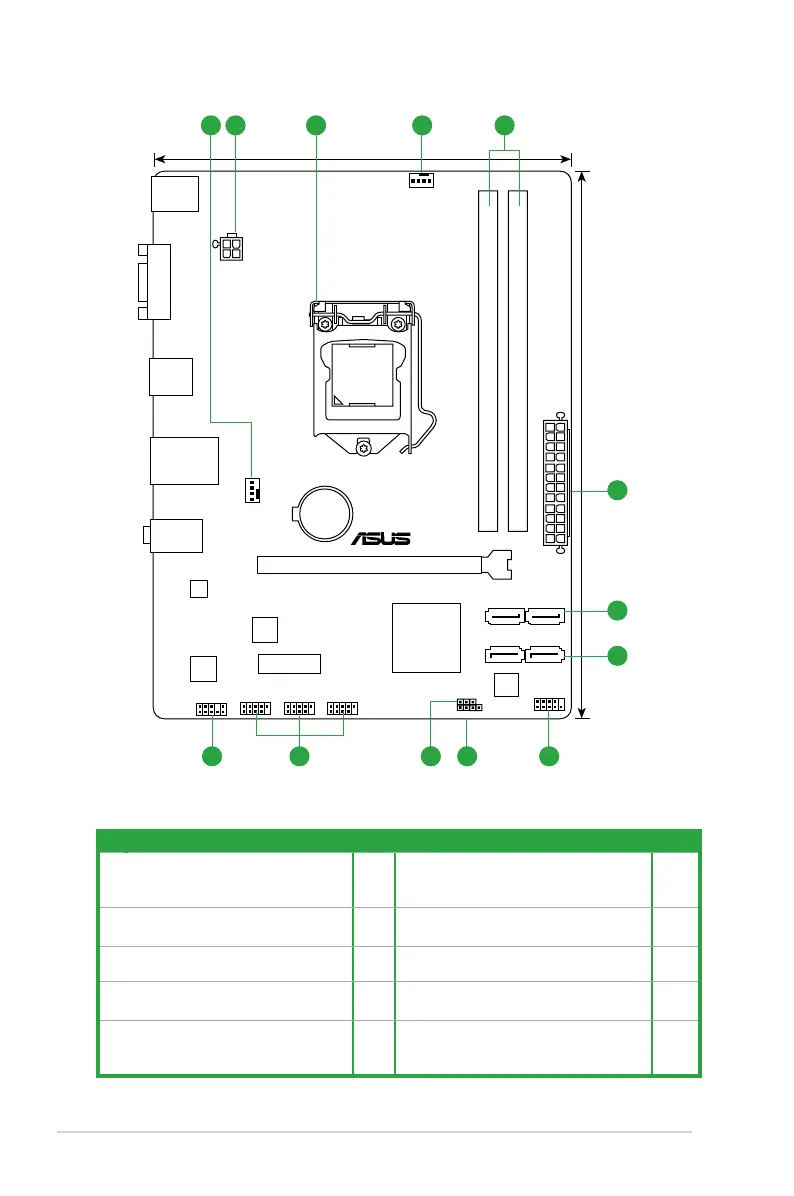

1.5.3 主板結構圖
1.5.4 主板元件說明
接口/跳線/插槽/指示燈 頁數 接口/跳線/插槽/指示燈 頁數
1. 中央處理器 / 機箱風扇電源插槽
(4-pin CPU_FAN, 4-pin CHA_
FAN)
1-21 6. 系統控制面板連接排針 (10-1 pin
F_PANEL)
1-22
2. ATX 主板電源插槽 (24-pin
EATXPWR, 4-pin ATX12V)
1-20 7. 內置喇叭連接排針 (4-pin
SPEAKER)
1-22
3.
Intel
®
LGA1155 中央處理器插槽
1-7 8. CMOS 配置數據清除 (3-pin CLRTC) 1-17
4. DDR3 內存插槽 1-12 9. USB 擴展套件數據線插槽（10-1
pin USB56, USB78, USB910）
1-21
5.
Intel
®
H61 Serial ATA 3.0Gb/s
設備連接插座 (7-pin SATA3G_
1/2/3/4)
1-20 10. 前面板音頻連接排針 (10-1 pin
AAFP)
1-19
P8H61-M LX3 Series
PCIEX16
PCIEX1_1
USB56 USB78 USB910
F_PANEL
SPEAKER
CLRT
C
AAFP
ATX12V
EATXPWR
CPU_FAN
CHA_FAN
Lithium Cell
CMOS Power
Super
I/O
VIA
VT1708S
RTL
8111F
32Mb
BIOS
22.6cm(8.9in)
LGA1155
Intel
®
H61
DDR3 DIMM_A1 (64bit, 240-pin module) DDR3 DIMM_B1 (64bit, 240-pin module)
SATA3G_1
SATA3G_3
SATA3G_2
SATA3G_4
AUDIO
KBMS
LAN_USB12
USB34
17.3cm(6.8in)
VGA
321 41
2
78910
5
6
5
6

Asus P8H61-M LX3 PLUS Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of SATA II connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	VIA VT1708S
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H61
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Supported storage drive interfaces	SATA II
Maximum resolution	2048 x 1536 pixels
Maximum graphics card memory	1748 MB
Parallel processing technology support	Not supported
PCI Express slots version	2.0
Cables included	SATA
LAN controller	Realtek RTL8111F
Networking features	Gigabit Ethernet
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
BIOS type	UEFI
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	173 mm
Width	226 mm
