Chapter 4: Motherboard Information
4-24

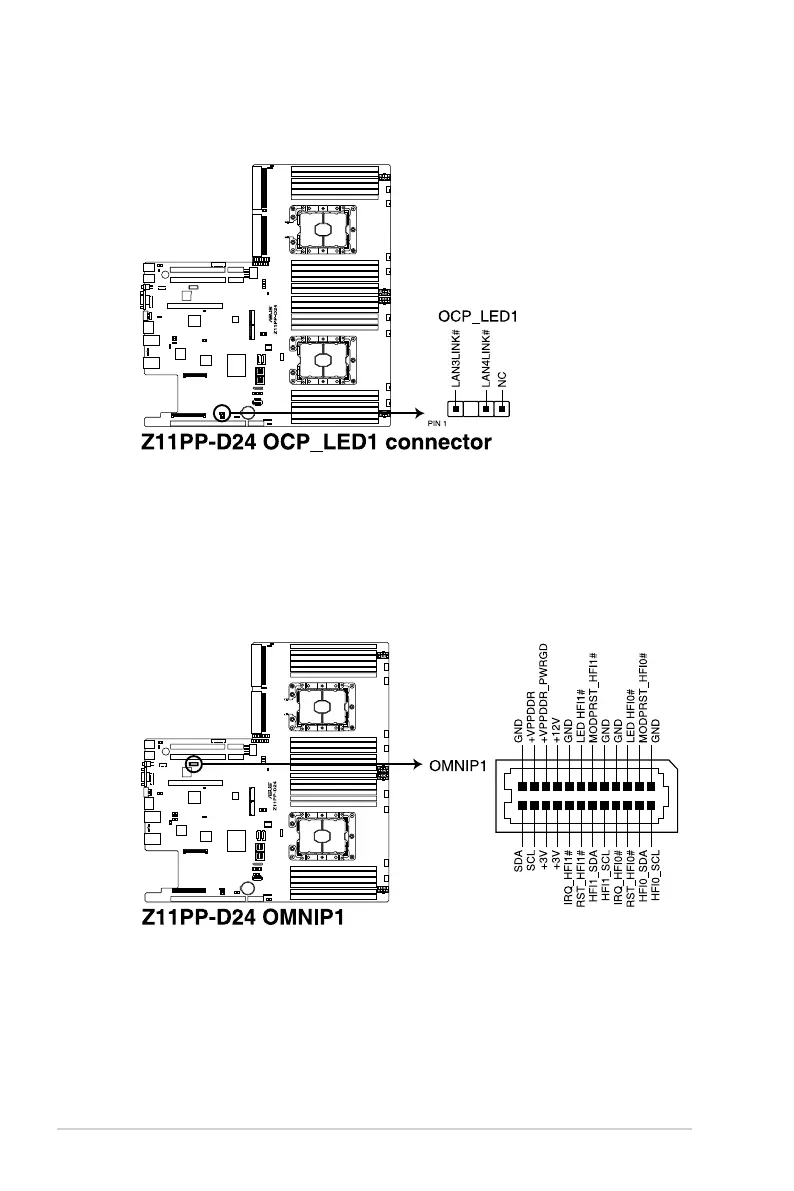

21. OCP LAN Activity LED connector (4-1 pin OCP_LED1)
OCP LAN LED connector supports OCP LAN card Active LED.
22. OMNIP connector (24-pin OMNIP1)
This connector allows you to provide sideband signals from the fabric CPU to a
HFI-OMNI supported ASUS card.
