ASUS RS720-E9 Series
4-23

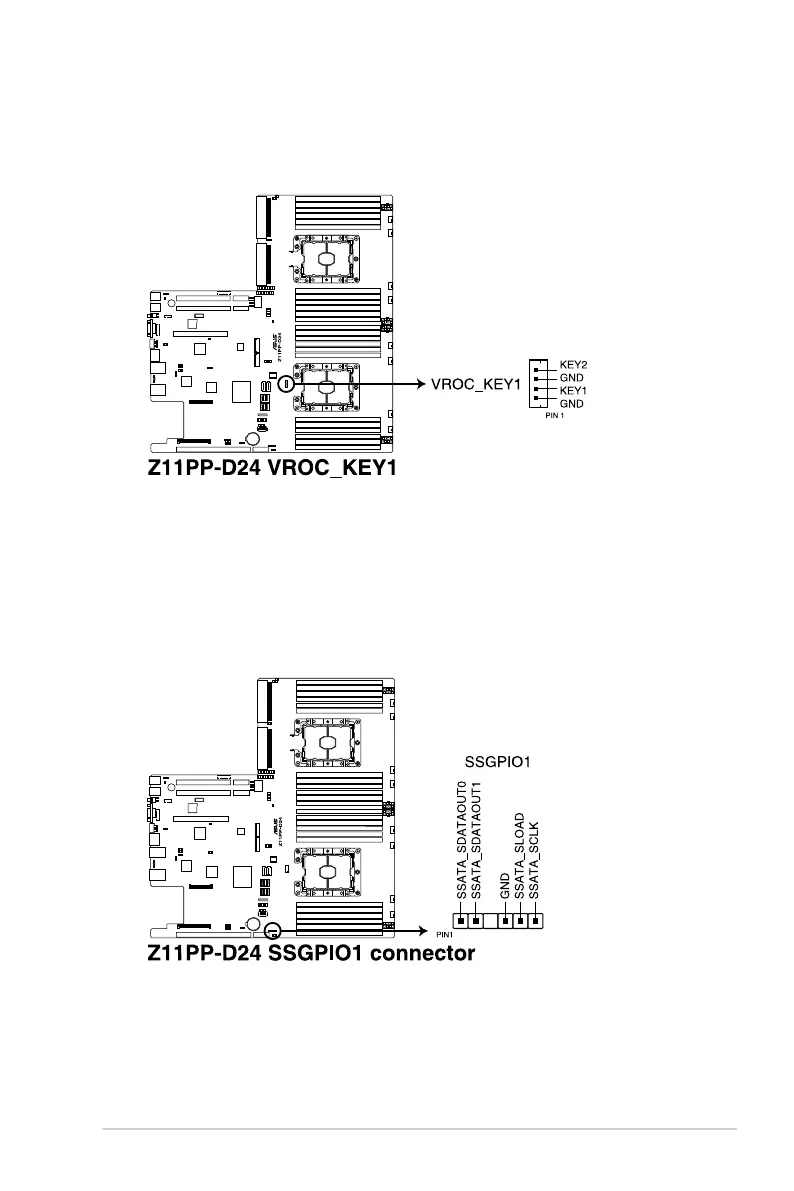

20. Serial General Purpose Input/Output connector (6-1 pin SSGPIO1)
The SSGPIO 1 connector is used for the Intel Rapid Storage Technology Enterprise
SGPIO interface that controls the LED pattern generation, device information, and
general purpose data.
19. VROC_KEY connector (4-pin VROC_KEY)
This connector allows you to connect a KEY module to support Intel VMD RAID
function.
