2-47
ASUS RS720-E12 Series
2.7.9 Installing an OCP 3.0 card

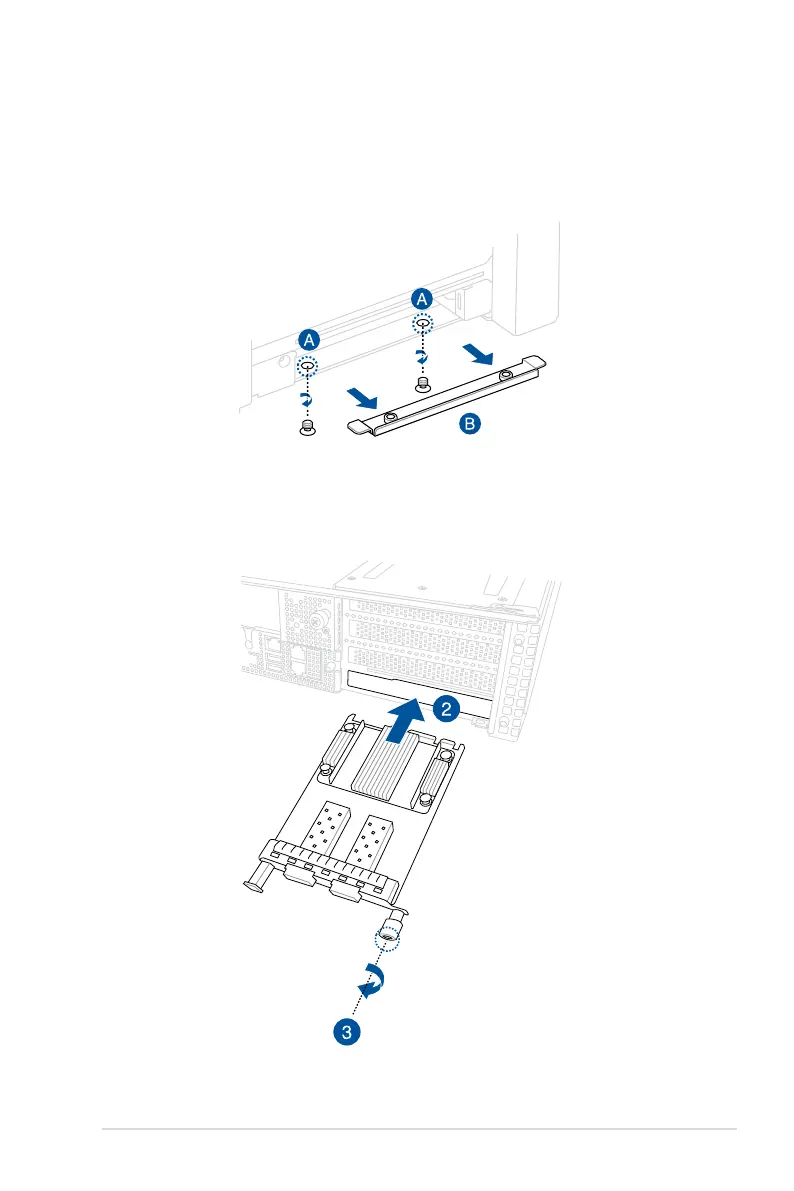

To install an OCP 3.0 card to the system:
1. (optional) Remove two (2) screws from the bottom of the chassis securing the OCP
metal bracket (A) in the rear of the system, then remove the OCP metal bracket (B).
2. Insert the OCP 3.0 card into the OCP 3.0 slot from the rear of the system.
3. Make sure the OCP 3.0 card is seated securely in the OCP 3.0 slot, and then secure it
using the thumbscrew.
