• Mgmt LAN port is for ASUS ASMB11-iKVM only.
• The Q-Code LED provides the most probable cause of an error code as a starting
point for troubleshooting. The actual cause may vary from case to case.
• Refer to the Q-Code table for details.

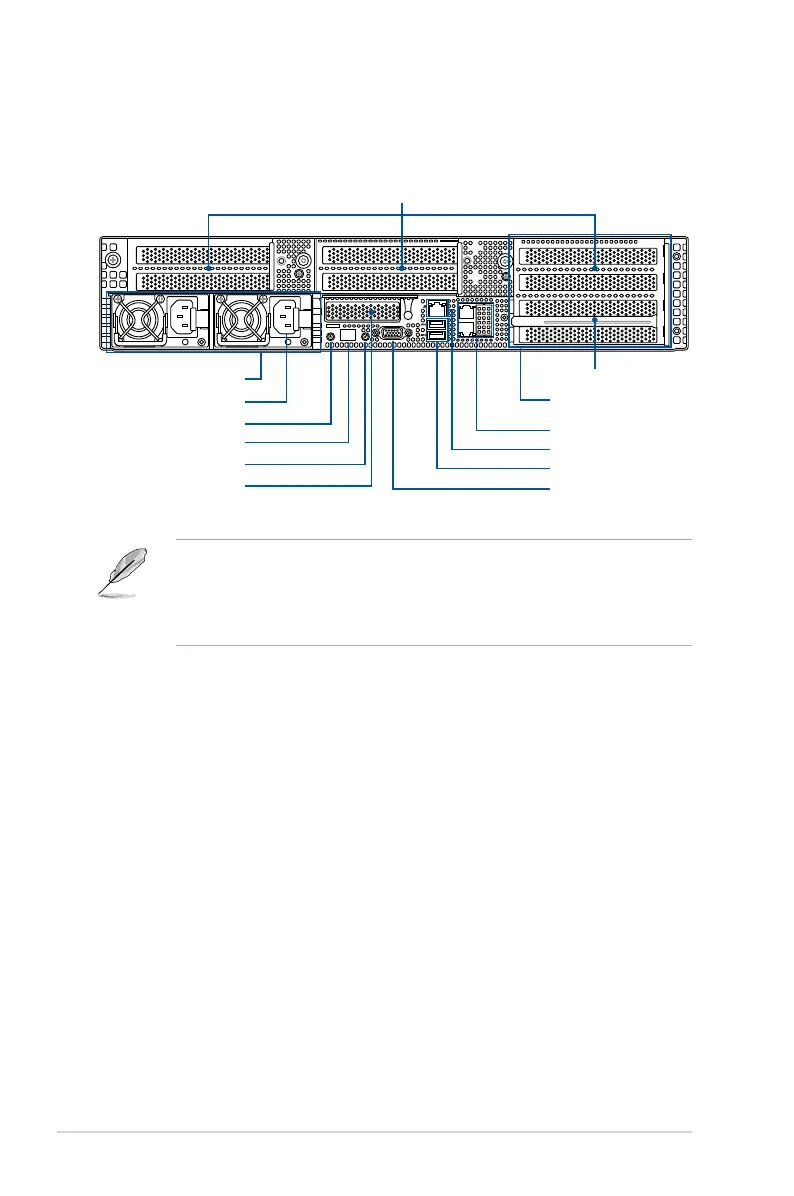

1.5 Rear panel features
The rear panel includes the expansion slots, and system power sockets. The middle part
includes the I/O shield with openings for the rear panel connectors on the motherboard.
Redundant power supply
Power connector
VGA port
Mgmt LAN port*
Q-Code LED
USB 3.2 Gen 1 ports
Location button
Optional LAN port expansion slots
Expansion slot
Power button
Expansion slot
Expansion slot
Optional External Fan location
(for GPU model)
