Asus RS720A-E12 Series - Redundant Power Supply Module

2-59
ASUS RS720-E12 Series
2.11.2 Redundant power supply module

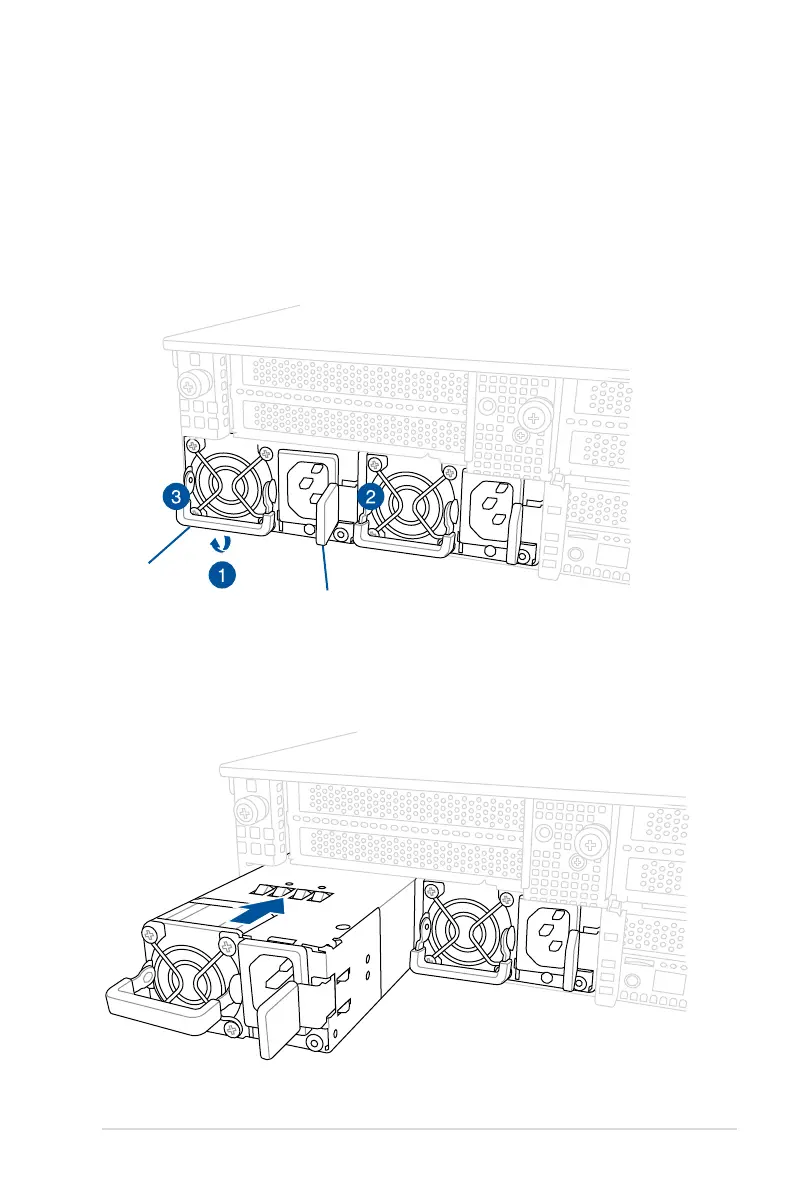

To replace a failed redundant power supply module:
1. Lift up the power supply module lever.
2. Hold the power supply module lever and press the PSU latch.
3. Pull the power supply module out of the system chassis.
4. Prepare the replacement power supply module.
5. Insert the replacement power supply module into the chassis then push it inwards until
the latch locks into place.
Module lever
PSU latch
