ASUS RS720A-E12 Series
4-19

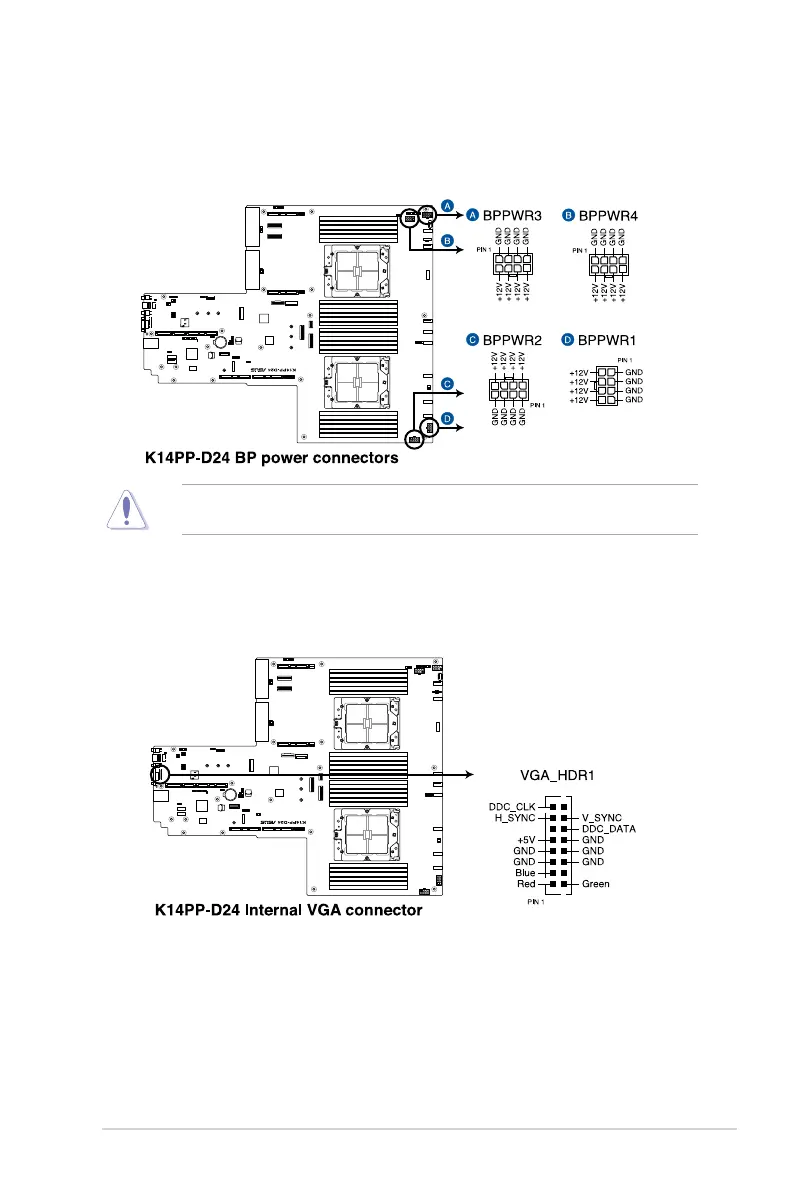

9. Backplane Power connector (8-pin BPPWR1-4)
These connectors are for the power supply plugs that connect to the backplane. The
power supply plugs are designed to fit these connectors in only one orientation. Find
the proper orientation and push down firmly until the connectors completely fit.
DO NOT connect VGA cards to these connectors. Doing so may cause system boot errors
and permanent damage to your motherboard or device.
10. VGA connector (16-pin VGA_HDR1)
This connector supports the VGA High Dynamic-Range interface.
