ASUS RS720A-E12 Series
4-23

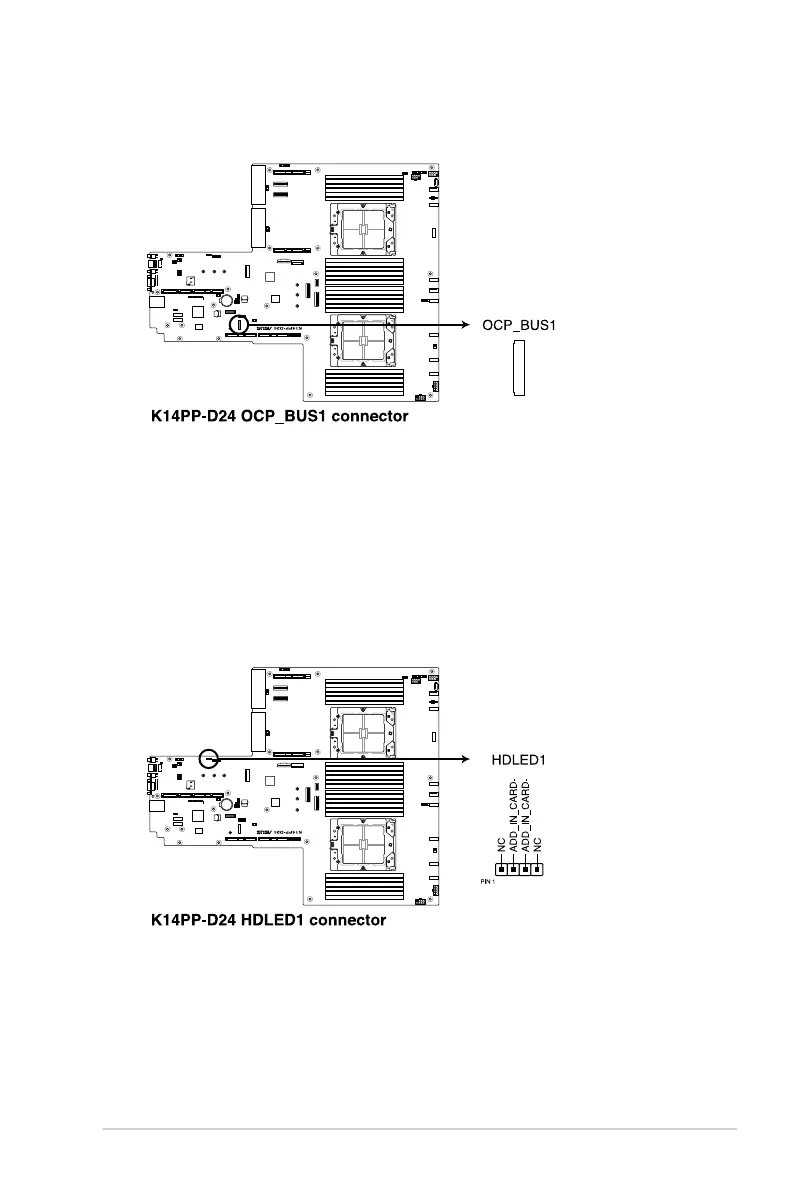

16. OCP bus connector (OCP_BUS1)
This connector connects the OCP 3.0 Riser card NCSI signals to the motherboard
17. Hard Disk Activity LED connector (4-pin HDLED1)
This LED connector is for the storage add-on card cable connected to the SATA or
SAS add-on card. The read or write activities of any device connected to the SATA or
SAS add-on card causes the front panel LED to light up.
