5-48
Chapter 5: BIOS Setup

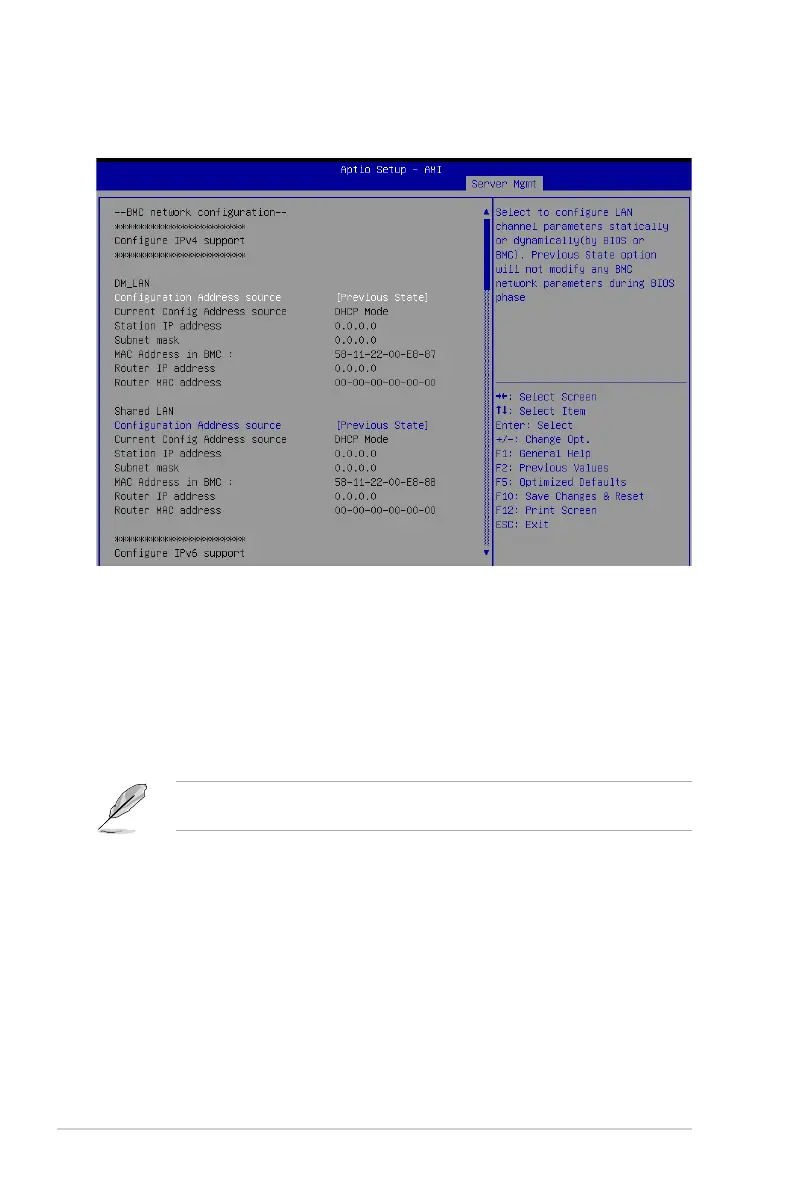

Configure IPV4 support
DM_LAN/Shared LAN
Configuration Address source [Previous State]
This item allows you to configure LAN channel parameters statistically or dynamically
(by BIOS or BMC). [Previous State] option will not modify any BMC network
parameters during BIOS phase.
Configuration options: [Previous State] [Static] [DynamicBmcDhcp]
[DynamicBmcNonDhcp]
The following items are available only when Configuration Address source is set to
[Static].
Station IP address
Allows you to set the station IP address.
Subnet mask
Allows you to set the subnet mask. We recommend that you use the same
Subnet Mask you have specified on the operating system network for the
used network card.
Router IP Address
Allows you to set the router IP address.
Router MAC Address
Allows you to set the router MAC address.
5.10.2 BMC network configuration
The sub-items in this configuration allow you to configure the BMC network parameters.
