3-3ASUS RS920-E7/RS8; RS926-E7/RS8

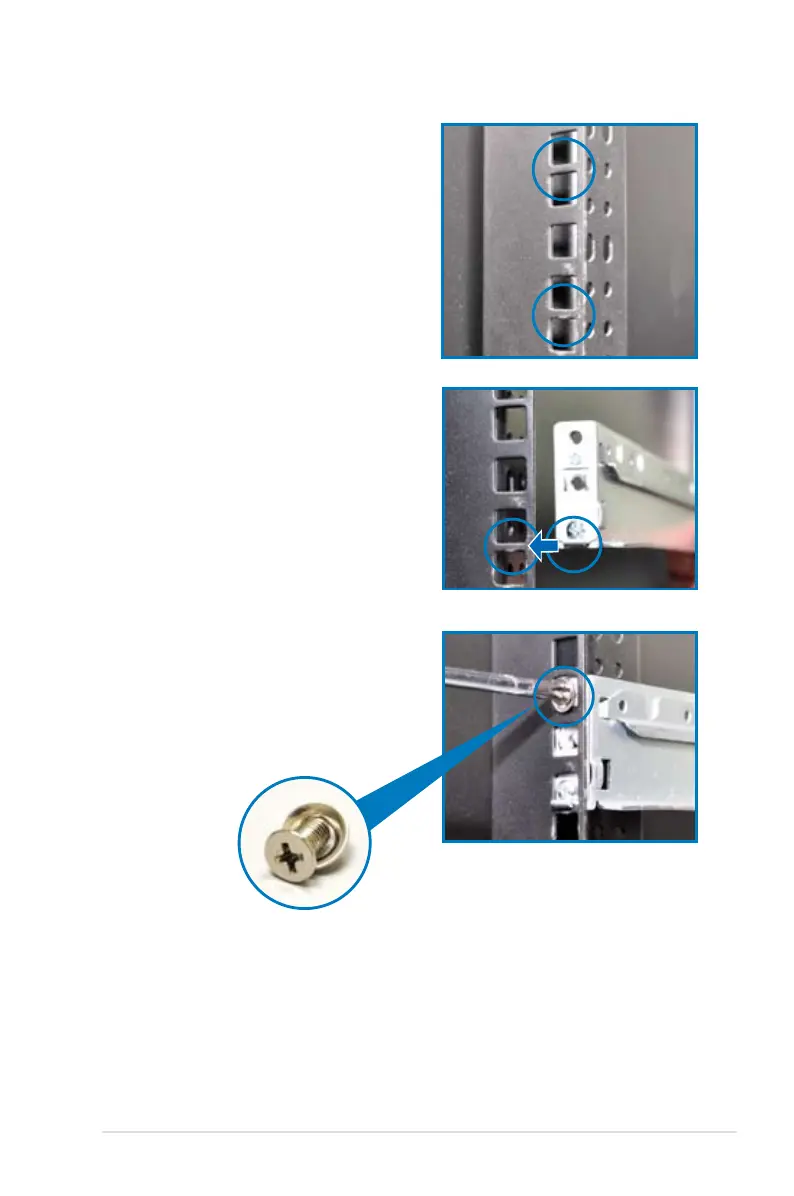

1. Select a 1U space on the rack
where you want to install the
rack rail. A 1U space consists
of three square mounting holes
with two thin lips on the top and
the bottom, as shown in the right
gure.
2. Adjust the rack rail to t the depth
of the rack.
4. Secure the front and rear ends of
the rail with two rack screws and
washers.
5. Repeat step 1 to 4 to attach the
rack rail on the other side of the
rack.
3. From inside the rack, place the
rear rail hook on the bottom thin
lip of the rear mounting hole, and
then place the front rail hook on the
bottom thin lip of the front mounting
hole, as shown in the right gure.

Asus RS920-E7/RS8 Specifications

General

Processor family	Intel
Processor socket	LGA 2011 (Socket R)
Intel Xeon series	E5-4600
Motherboard chipset	Intel® C602
Compatible processor series	Intel® Xeon®
Number of processors supported	4
Maximum RDIMM memory	1024 GB
Maximum UDIMM memory	256 GB
Number of DIMM slots	32
Supported memory types	DDR3-SDRAM
Supported RDIMM clock speeds	800, 1066, 1333, 1600 MHz
Supported UDIMM clock speeds	1066, 1333 MHz
Supported DIMM module capacities	16GB, 1GB, 2GB, 4GB, 8GB
RAID levels	0, 1, 5, 10
Hot-swap HDD bays	Yes
Storage drive sizes supported	3.5 \
Number of storage drives supported	8
Supported storage drive interfaces	Serial Attached SCSI (SAS), Serial ATA II, Serial ATA III
Graphics card	AST2300
Graphics card family	Aspeed
Maximum graphics card memory	16 MB
LAN controller	Intel® I350-AM4
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Chassis type	Rack (2U)
PS/2 ports quantity	1
USB 2.0 ports quantity	6
Ethernet LAN (RJ-45) ports	5
PCI Express x8 slots	2
Compatible operating systems	CentOS 5.6 32/64-bit, Windows Server 2008 R2, Windows Server 2008 R2 Enterprise, Windows Server 2008 Enterprise 32/64-bit, RedHat Enterprise Linux AS5.6/6.0 32/64-bit, SuSE Linux Enterprise Server 11.2 32/64-bit, VMWare ESX4.1/ESXi4.1
Safety	CE, EN55022
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	20 - 90 %
Power supply	1620 W

Weight and Dimensions

Depth	750 mm
Width	444 mm
Height	88 mm
Weight	20000 g
