ASUS RS920-E7/RS8; RS926-E7/RS8 4-17

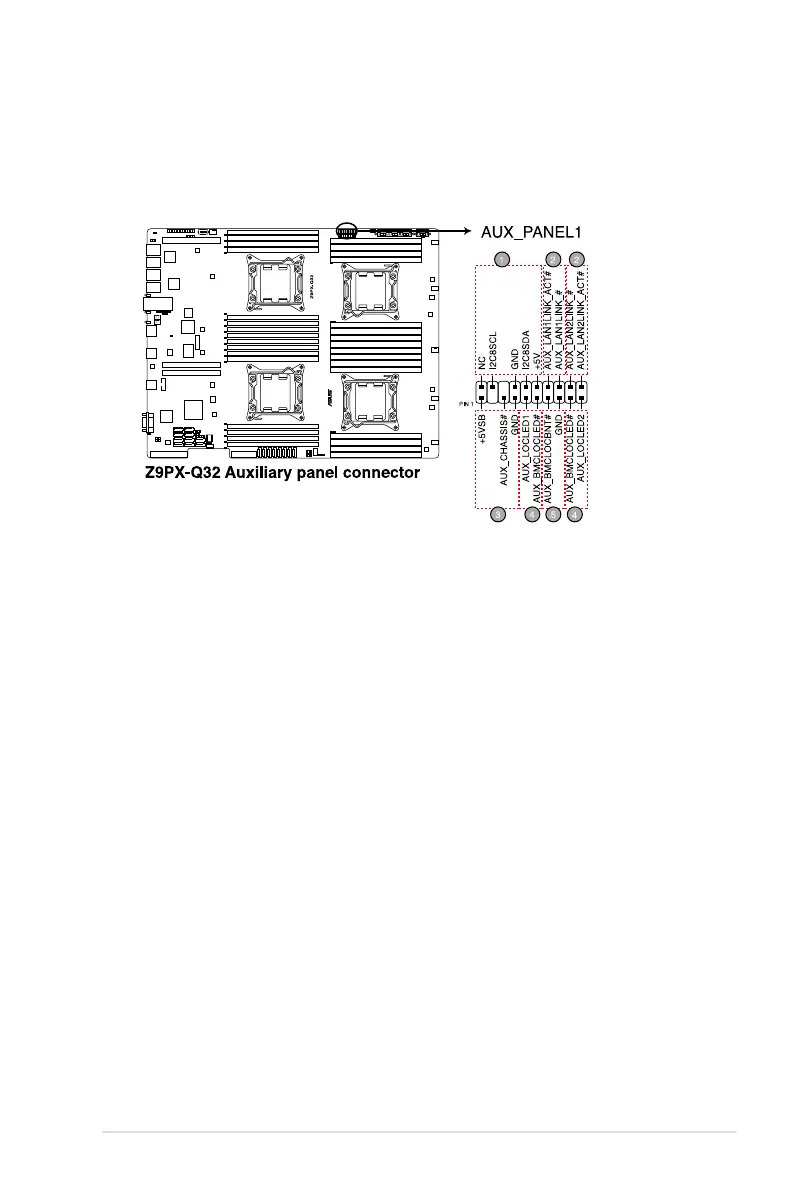

13. Auxiliary panel connector (20-2 pin AUX_PANEL1)
This connector is for additional front panel features including front panel
SMB, locator LED and switch, chassis intrusion, and LAN LEDs.
1. Front panel SMB (6-1 pin FPSMB)
These leads connect the front panel SMBus cable.
2. LAN activity LED (2-pin LAN1_LED, LAN2_LED
)
These leads are for Gigabit LAN activity LEDs on the front panel.
3. Chassis intrusion (4-1 pin CHASSIS)
These leads are for the intrusion detection feature for chassis with
intrusion sensor or microswitch. When you remove any chassis
component, the sensor triggers and sends a high-level signal to these
leads to record a chassis intrusion event. The default setting is short
CASEOPEN and GND pin by jumper cap to disable the function.
4. Locator LED (2-pin LOCATORLED1 and 2-pin LOCATORLED2)
These leads are for the locator LED1 and LED2 on the front panel.
Connect the Locator LED cables to these 2-pin connector. The LEDs will
light up when the Locator button is pressed.
5. Locator Button/Swich (2-pin LOCATORBTN)
These leads are for the locator button on the front panel. This button
queries the state of the system locator.

Asus RS920-E7/RS8 Specifications

General

Processor family	Intel
Processor socket	LGA 2011 (Socket R)
Intel Xeon series	E5-4600
Motherboard chipset	Intel® C602
Compatible processor series	Intel® Xeon®
Number of processors supported	4
Maximum RDIMM memory	1024 GB
Maximum UDIMM memory	256 GB
Number of DIMM slots	32
Supported memory types	DDR3-SDRAM
Supported RDIMM clock speeds	800, 1066, 1333, 1600 MHz
Supported UDIMM clock speeds	1066, 1333 MHz
Supported DIMM module capacities	16GB, 1GB, 2GB, 4GB, 8GB
RAID levels	0, 1, 5, 10
Hot-swap HDD bays	Yes
Storage drive sizes supported	3.5 \
Number of storage drives supported	8
Supported storage drive interfaces	Serial Attached SCSI (SAS), Serial ATA II, Serial ATA III
Graphics card	AST2300
Graphics card family	Aspeed
Maximum graphics card memory	16 MB
LAN controller	Intel® I350-AM4
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Chassis type	Rack (2U)
PS/2 ports quantity	1
USB 2.0 ports quantity	6
Ethernet LAN (RJ-45) ports	5
PCI Express x8 slots	2
Compatible operating systems	CentOS 5.6 32/64-bit, Windows Server 2008 R2, Windows Server 2008 R2 Enterprise, Windows Server 2008 Enterprise 32/64-bit, RedHat Enterprise Linux AS5.6/6.0 32/64-bit, SuSE Linux Enterprise Server 11.2 32/64-bit, VMWare ESX4.1/ESXi4.1
Safety	CE, EN55022
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	20 - 90 %
Power supply	1620 W

Weight and Dimensions

Depth	750 mm
Width	444 mm
Height	88 mm
Weight	20000 g
