2-23ASUS RS920-E7/RS8; RS926-E7/RS8
If you install two power supply units in the system, you can switch the
working behavior of the two PSUs between
1+1jumpermode
and
2+0
jumpermode
.
1+1jumpermode:
If the total power consumption of the system is less
than 1400W, the system can be booted using one PSU and the PSU hot-
swap feature is supported. If the total power consumption of the system
exceeds 1400W, the maximum output power of the PSUs can reach to
2800W with PSU hot-swap feature disabled, and the system shuts down if
any of the PSUs is removed.
2+0jumpermode:
The system can be booted only when two PSUs are
installed. The maximum output power of the PSUs can reach to 2800W with
PSU hot-swap feature disabled, and the system shuts down if any of the
PSUs is removed.
The output power varies with different input voltages. Refer to the table
below for details.
SKU Input Voltage Max. Output Power (Watt)
1620W
100V—140V 1100W
180V—240V 1400W

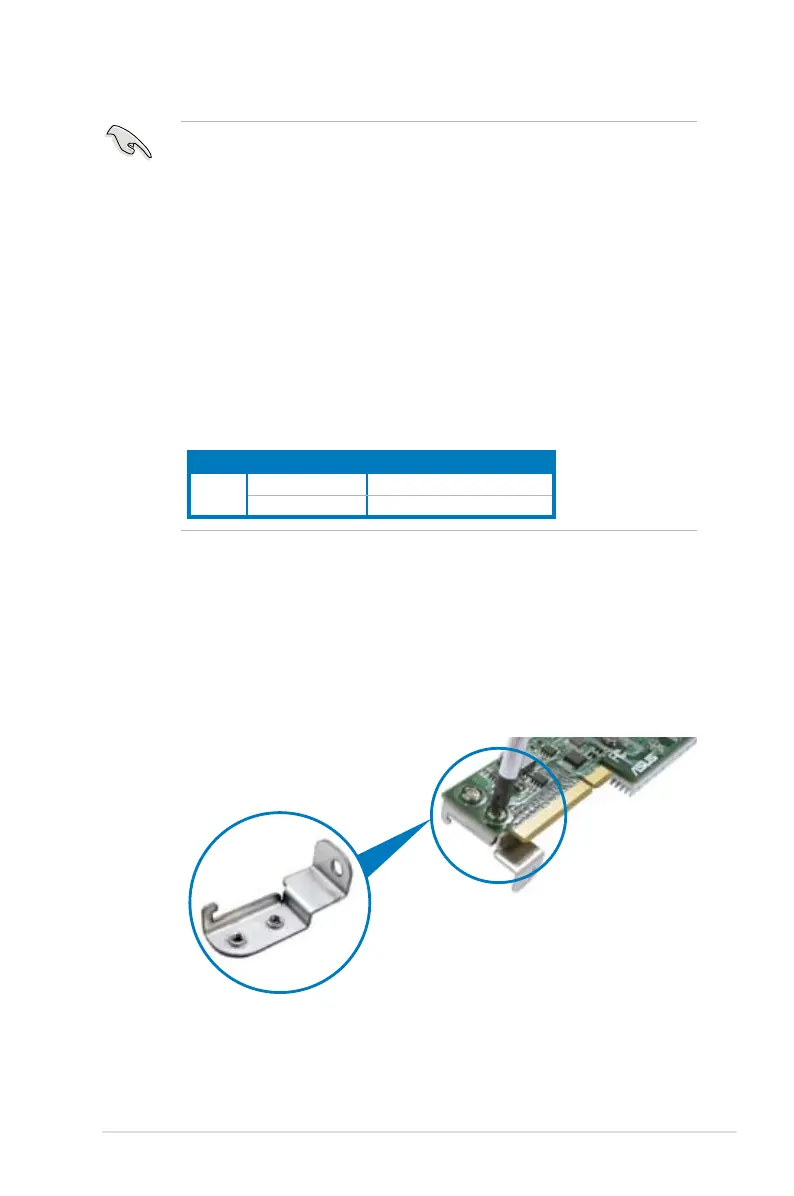

2.8.3 Installing ASUS PIKE RAID card (optional)
Follow the steps below to install an optional ASUS RAID card on your motherboard.
If you install the PIKE 2108 Series SAS RAID card, follow steps 1 and 2 to remove
the outer heatsink on RAID card.
1. Remove the two screws that secure
the heatsink bracket on the back of
the SAS RAID card.
Heatsink bracket
