4. Names and Functions of Components
4-1. Detection Section (Fig.4-1・Fig.4-2)
① Prism
Sample material contacts the prism surface to
allow for the measurement of its refractive
index, Brix and/or concentration.
② Sample inlet unit mounting part
Mount the sample inlet unit on this part.
③ Detection section - Display section connection
terminal
Connect the DS-2 cable to this terminal.
④ Air cooling fin
Dissipates heat to preserve the unit's
electronic components when measuring high
temperature samples.
⑤ Temperature sensor
⑥ Mark to show the position of the thermo
sensor.

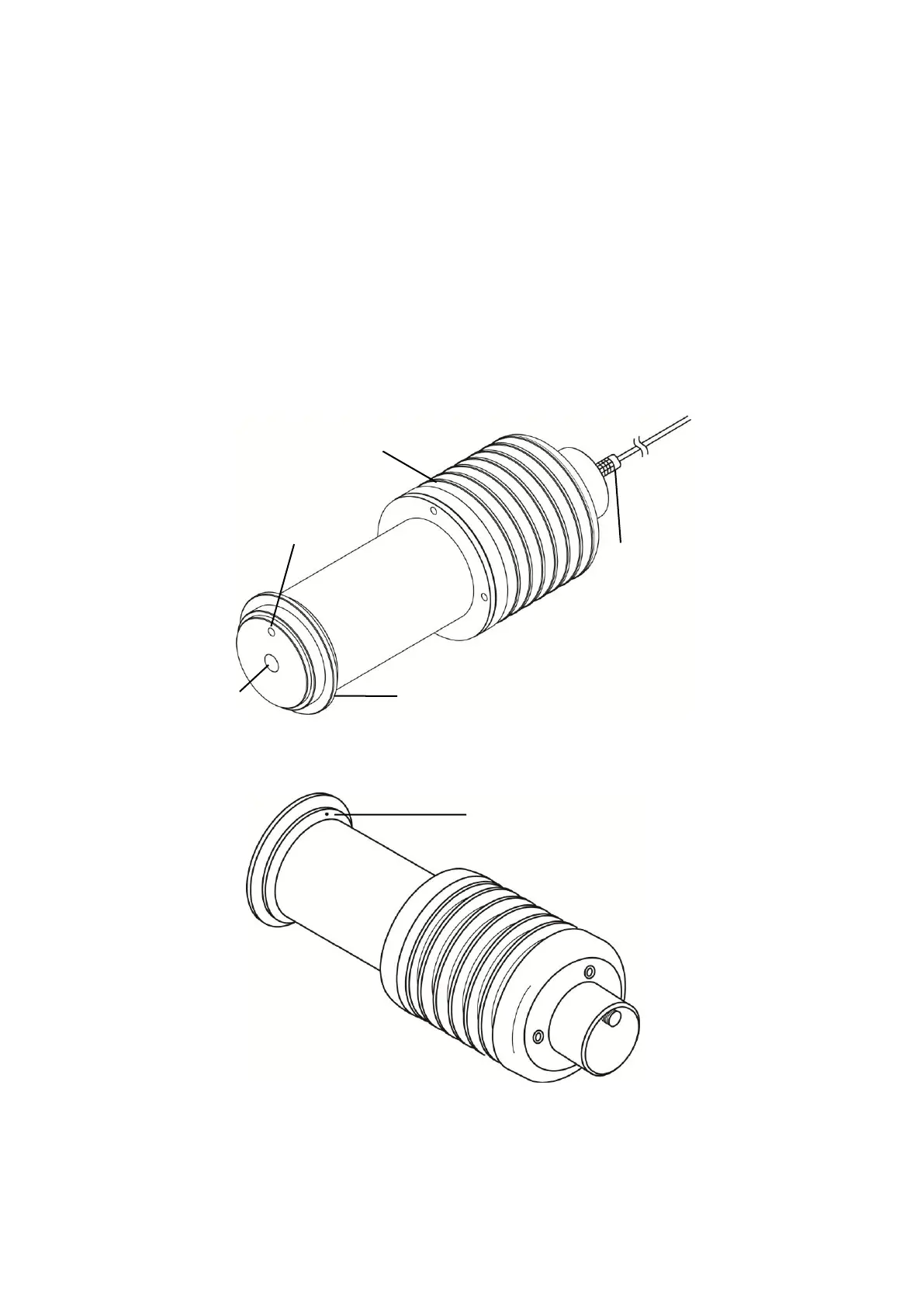

Fig.4-1
Fig.4-2
