DSL/Cable Service without Network Router
If a network router is not part of your internet equipment setup, the MicroCell should be connected
between the modem and the PC.
Ethernet Cabling Procedures
• Place the MicroCell upright, near the modem and AC outlet.
• Disconnect the Ethernet cable from the modem, while leaving the other end connected to the
PC.
• Reconnect the Ethernet cable to the black connector marked PC on the MicroCell.
• Find the Ethernet cable that shipped with the MicroCell. Connect one end to the modem and the
other end to the yellow connector marked Ethernet on the MicroCell.
• When you have finished cabling the system, turn on the modem and the PC.
Note: It is essential for the PC to be connected to the PC port to ensure the best quality of
service on the MicroCell.

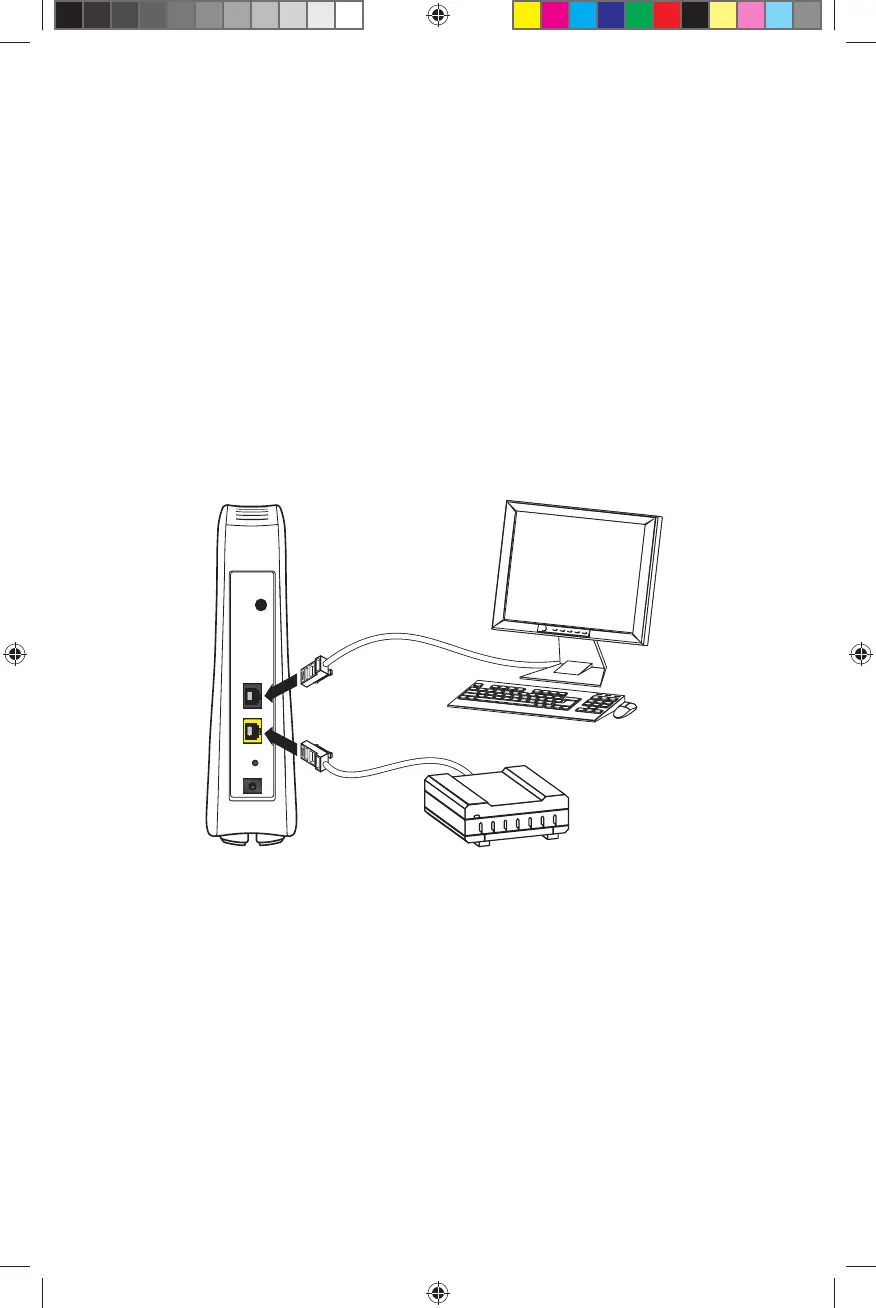

T13827
DSL/Cable
Modem
ANT
PC
Ethernet
Power
Reset
PC
AT&T 3G
MicroCell
™
