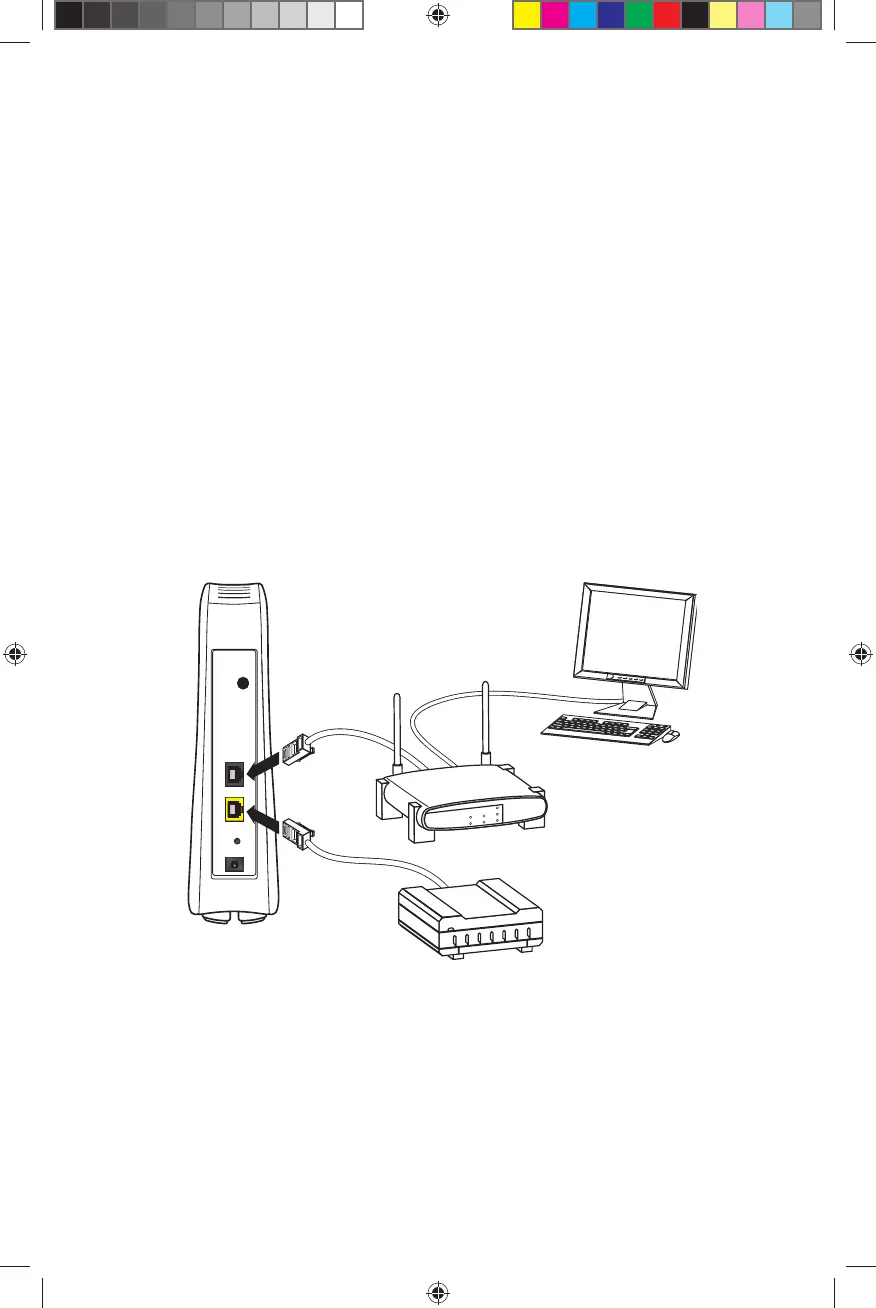

DSL/Cable Service with Network Router
If a network router is part of your Internet equipment setup, the MicroCell should be installed
between the modem and network router.
Ethernet Cabling Procedures
• Place the MicroCell upright, near the modem, network router, and AC outlet.
• Turn off the modem, network router, and PC.
• Disconnect the Ethernet cable from the modem, while leaving the other end connected to the
network router.
• Reconnect the Ethernet cable to the black connector marked PC on the MicroCell.
• Find the Ethernet cable that shipped with the MicroCell. Connect one end to a free port on
the DSL/Cable modem and the other end to the yellow connector marked Ethernet on the
MicroCell.
• When you have finished cabling the system, turn on the modem first, the router second, and then the PC.
Note: Wait a few moments between turning on each device. This power-up sequence may be
critical for older devices.
Note: It is essential for the router to be connected to the PC port to ensure the best quality of
service on the MicroCell.
