CONNECTING THE
CONTROL UNIT
Voice Terminal Wiring
Before connecting the control unit to the system, you must be sure of the
following:
●
●
●
●
The building wiring is completely installed.
The jack field labels correspond with the distant end location.
The distant end labels correspond with the jack field labels (optional).
The network interface labels have the correct telephone numbers.

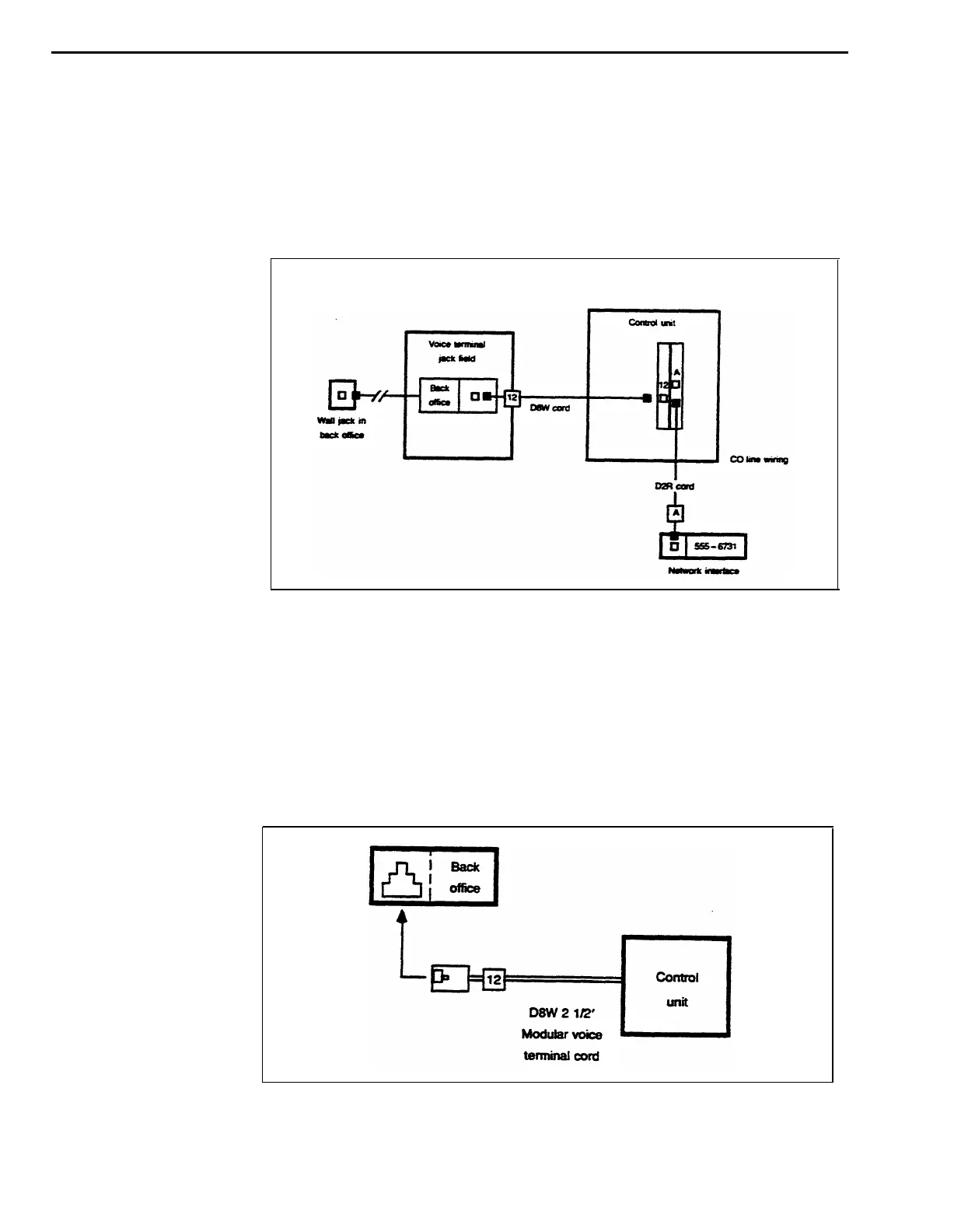

FIGURE 8-4 Connecting the Control Unit
Make sure the control unit power is off before connecting system wires. Then,
refer to the System Configuration Form for each step in the following
procedures.
1
2
3
Label one end of each D8W cord for each intercom number.
Plug the unlabeled end of each intercom cord into the corresponding voice
terminal jack of the control unit.
Plug the labeled end of each intercom into the appropriately labeled jack
in the apparatus box of the jack field.
8-4 Section 8: Installation
