CO Line Wiring
1
2
3

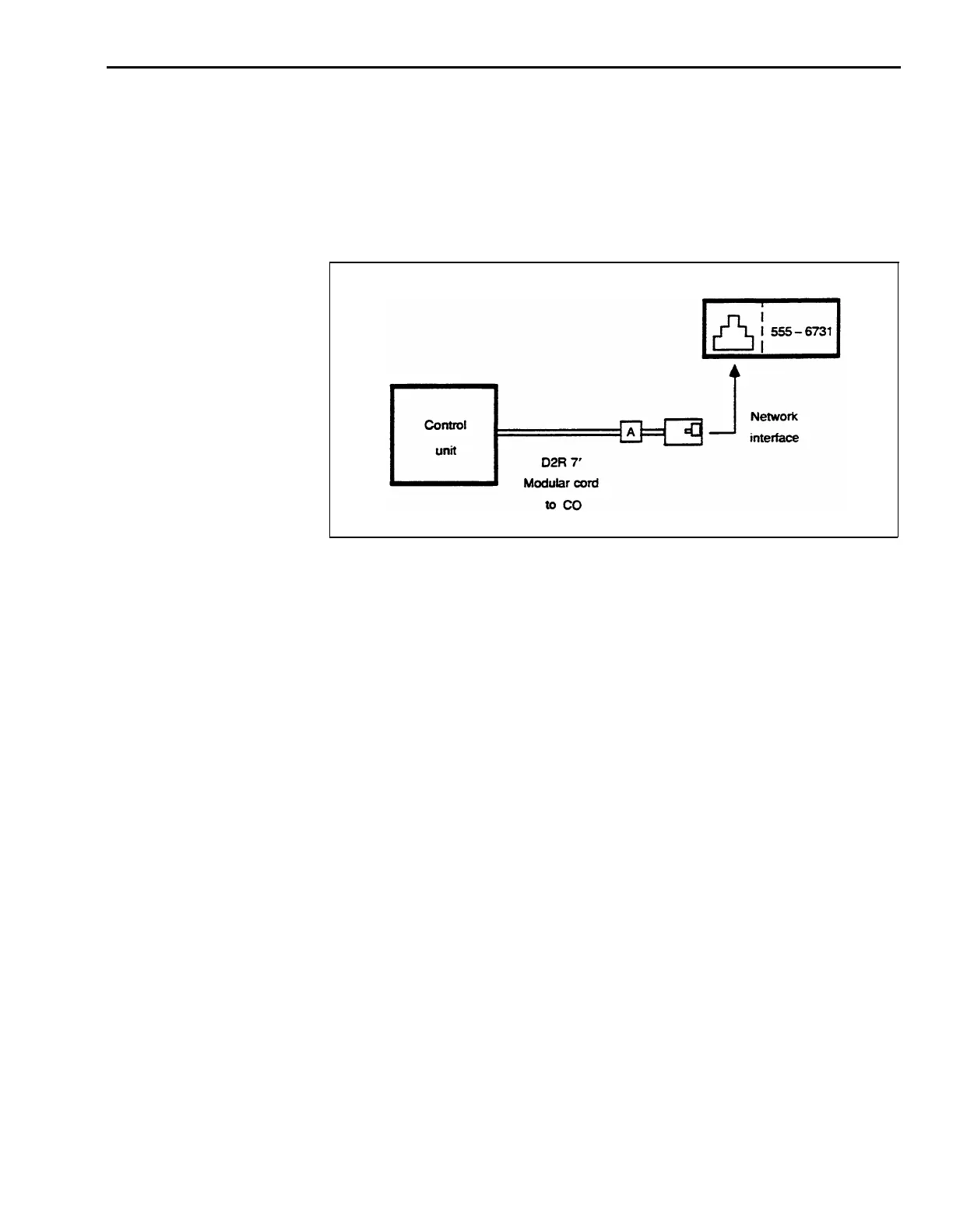

Label each line cord running from the network interface to the control
unit (A through H).
Plug the unlabeled end of each line cord into the corresponding control
unit line jack.
Plug the labeled end of each line cord into the appropriately labeled jack
at the network interface.
I
For future reference, you may want to make a copy of all the assignments that
are labeled at the jack field.
MERLIN Plus System Installation
8-5
