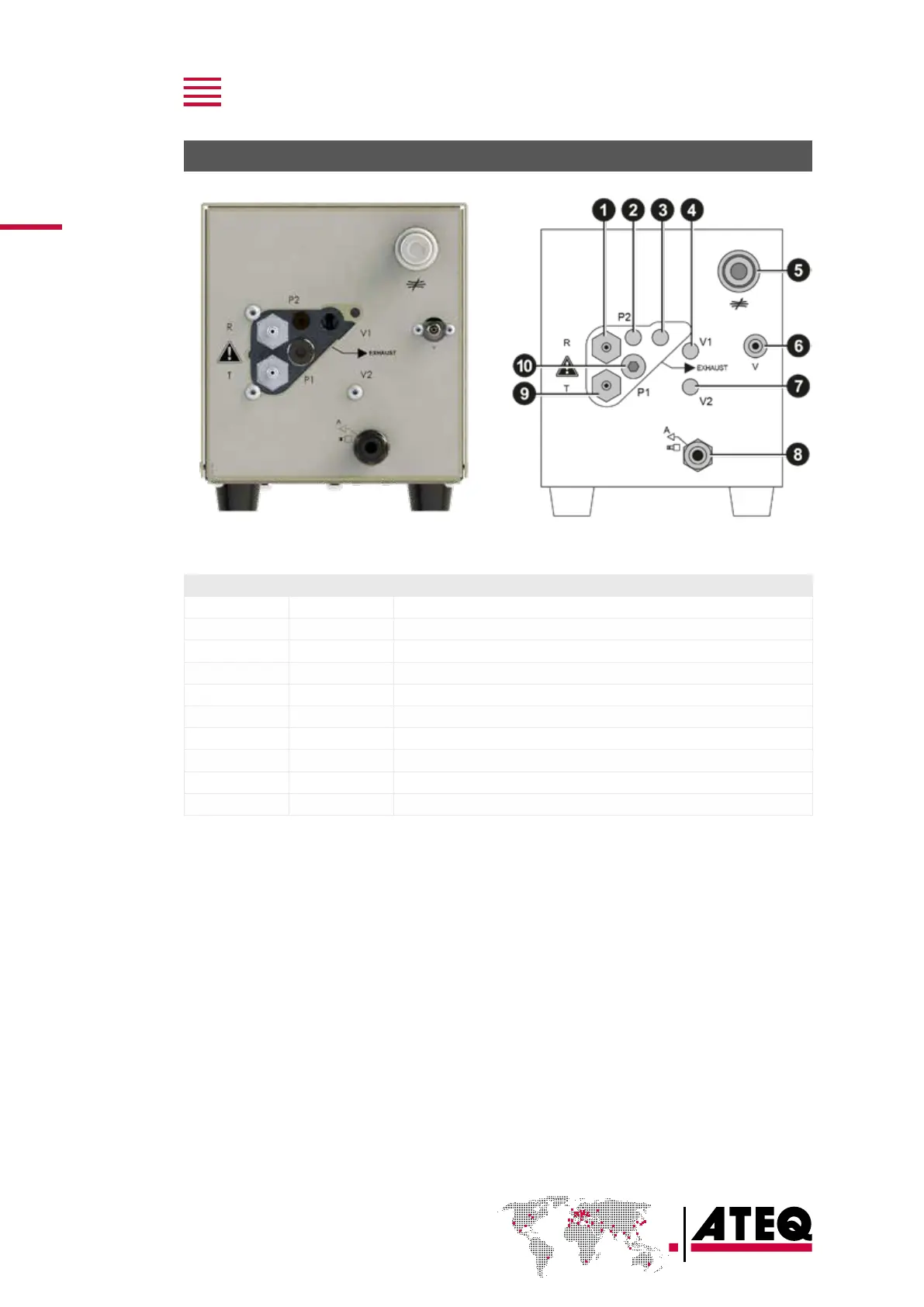

CONNECTORS ON THE BACK PANEL (WITH ALL OPTIONS)
Ref Name Description
1
R Reference part connector
2
P2 Not used
3
- Exhaust output
4 V1 Differential sealed part connector (option)
5 - Quick connector
6 V Calibration check by volume variation connector (option)
7
V2 Differential sealed part connector (option)
8
A Pneumatic output or A automatic connector (option)
9
T Test part connector
10
P1 Pressurization output
