QSG_F28+.394.00_EN_01 / 2019-02-25
12 / 42
DIGITAL LINKS
PC USB connectors
USB connectors can be used for connecting miscellaneous compatible USB devices.

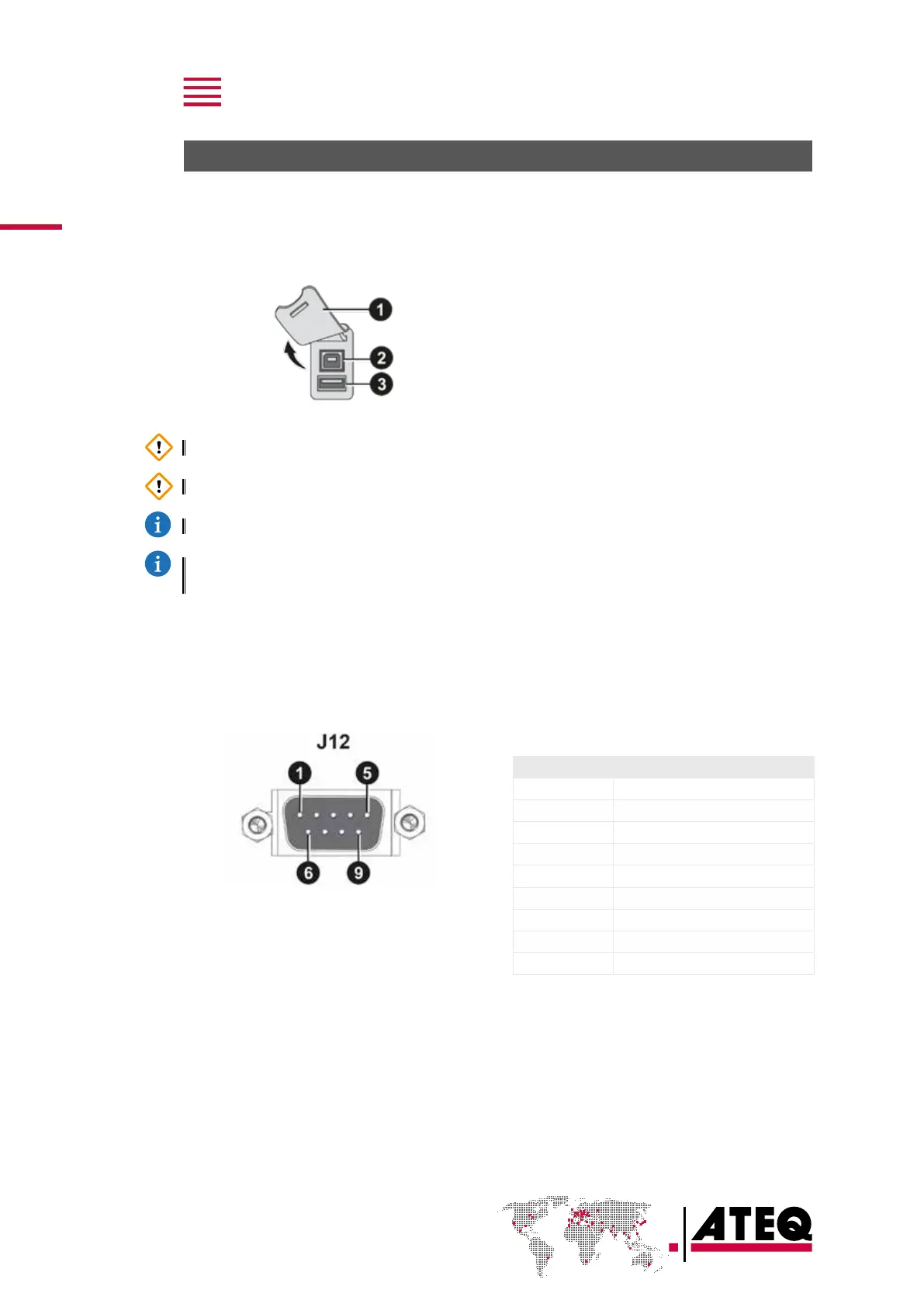

The USB connectors are located under the rubber cover1 (see figure).
1 Rubber cover
2 USB connector to PC (J2)
3 USB connector to remote control (J3)
Do not connect two USB devices at the same time.
Do not use a cable longer than 2 m.
Push the rubber cover1 slightly forward for an easy access to USB connectors2 and3.
Only use this connection for temporary communication. Connection to a PC cannot be used
permanently because the communication can be disconnected by the PC.
Printer RS232 connector / Modbus (option)
RS232 - SubD 9 pins male connector (printer) (J12)
RS232 for printer, barcode reader, PC connection.
Pin number Signal
1 Not used
2 RXD data input
3 TXD data input
4 Not used
5 Ground
6 Not used
7 RTS request to send
8 CTS clear to send
9 Not used
