QSG_F28+.394.00_EN_01 / 2019-02-25
13 / 42

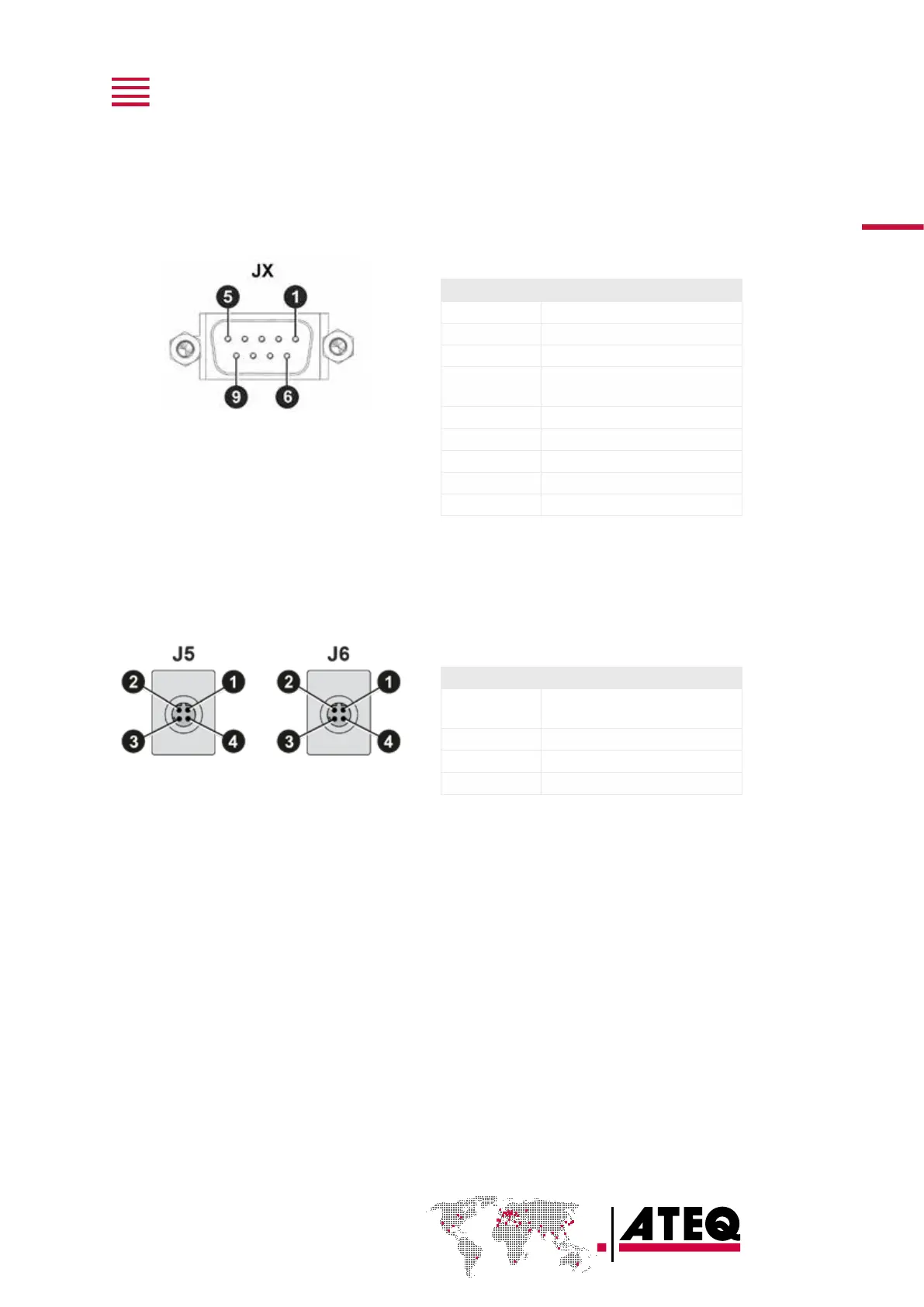

Profibus connector (JX) (option)
Profibus - SubD 9 pins female connector
Profibus: SubD 9 pins female connector
Pin number Signal
1 PE (ground)
2 Not used
3 Data line A
4 CNTR - A (repeater control
signal)
5 DGND (logic ground)
6 VP (supply)
7 Not used
8 Data line B
9 Not used
Profinet connector (J5 + J6)
M12D coded type connector - 4 pins female connector (J5 + J6)
Pin number Signal
1 Ethernet Tx + (Transmit
Data+)
2 Ethernet Rx + (Receive Data +)
3 Ethernet Tx - (Transmit Data -)
4 Ethernet Rx - (Receive Data -)
