QSG_F28+.394.00_EN_01 / 2019-02-25
14 / 42

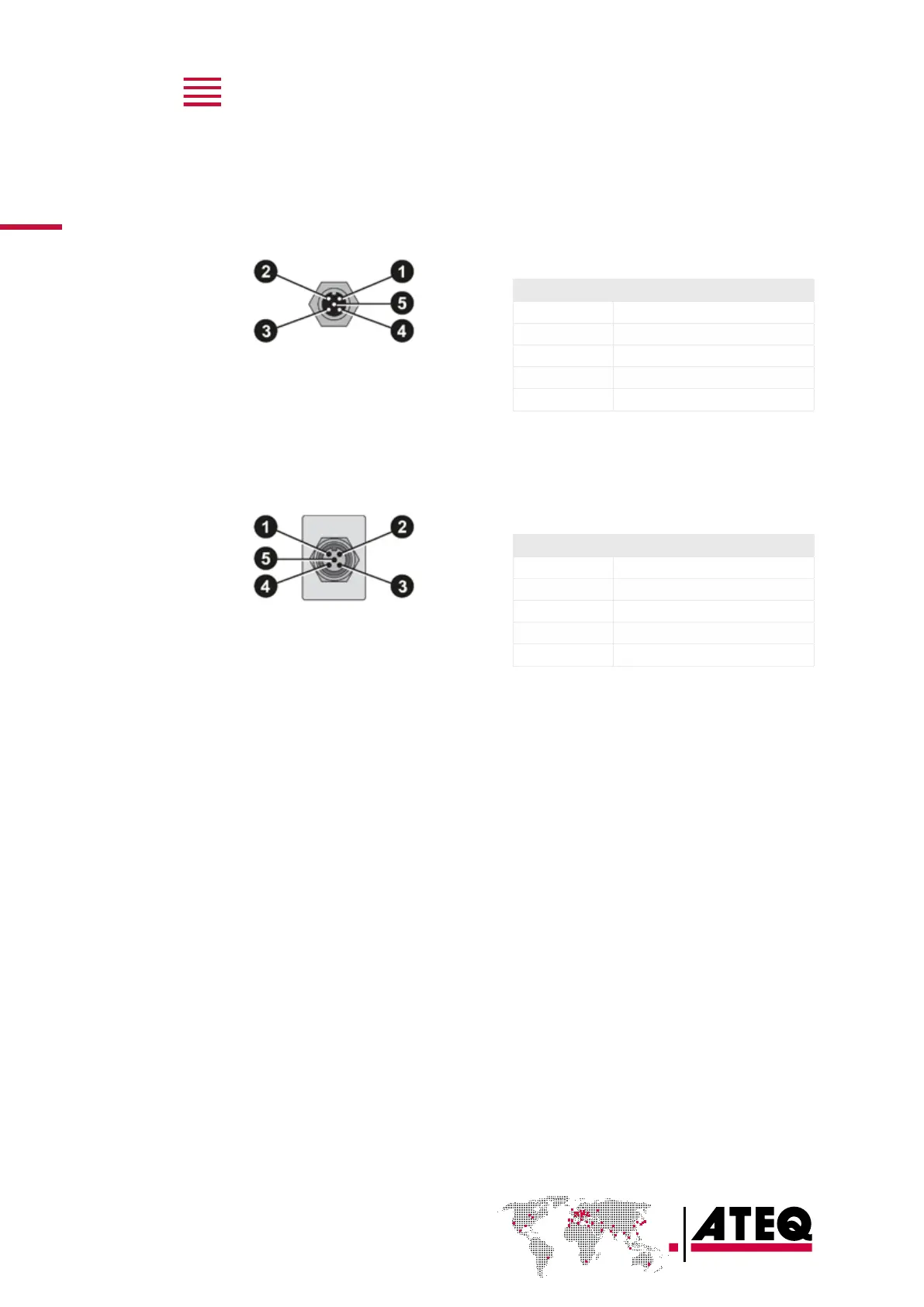

Devicenet connectors (J5) (J6) (
option)
M12 type connector - 5 pins male connector (J5) (Devicenet input)
F
or connection to others A
TEQ devices.
Pin number
Signal
1
Drain
2
V+
3
V-
4
CAN_H
5
CAN_L
M12 type connector - 5 pins female connector (J6) (Devicenet output)
F
or connection to others A
TEQ devices.
Pin number
Signal
1
Drain
2
V+
3
V-
4
CAN_H
5
CAN_L
13
15
