PNEUMATICS CONFIGURATION
Direct mode - Test with external regulator
From vacuum until 2 MPa (290 PSI)

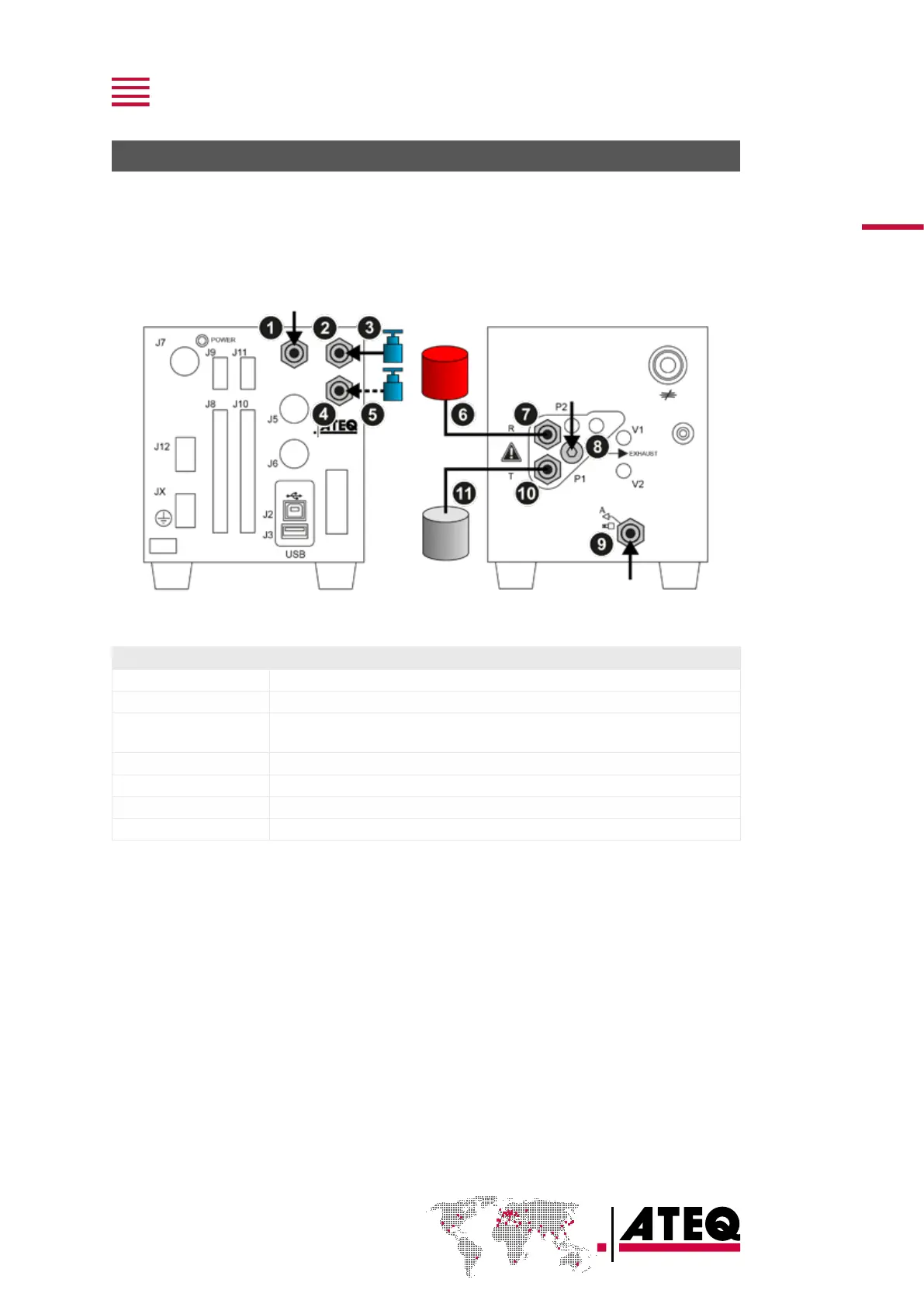

Connections
Connection Option / description
Air supply to1
Connection of the air supply to the valve air supply input
3 to2
Connection of an external regulator to the regulated air pressure input 1
5 to4
Connection of an external regulator to the regulated air pressure input 2
(option)
7 to6
Connection of the reference output to the reference part
10 to11
Connection of the test output to the part under test
8
Connection to additional volume (sealed part option)
9
Connection to pneumatic coupler
