QSG_F28+.394.00_EN_01 / 2019-02-25
16 / 42
DIGITAL INPUTS/OUTPUTS
The 24V DC power supply for the digital inputs can be provided by 2 means:
— The internal power supply of the device (0.3A max)
— An external power supply provided by the customer.
Inputs default mode is PNP. NPN mode is available on request.

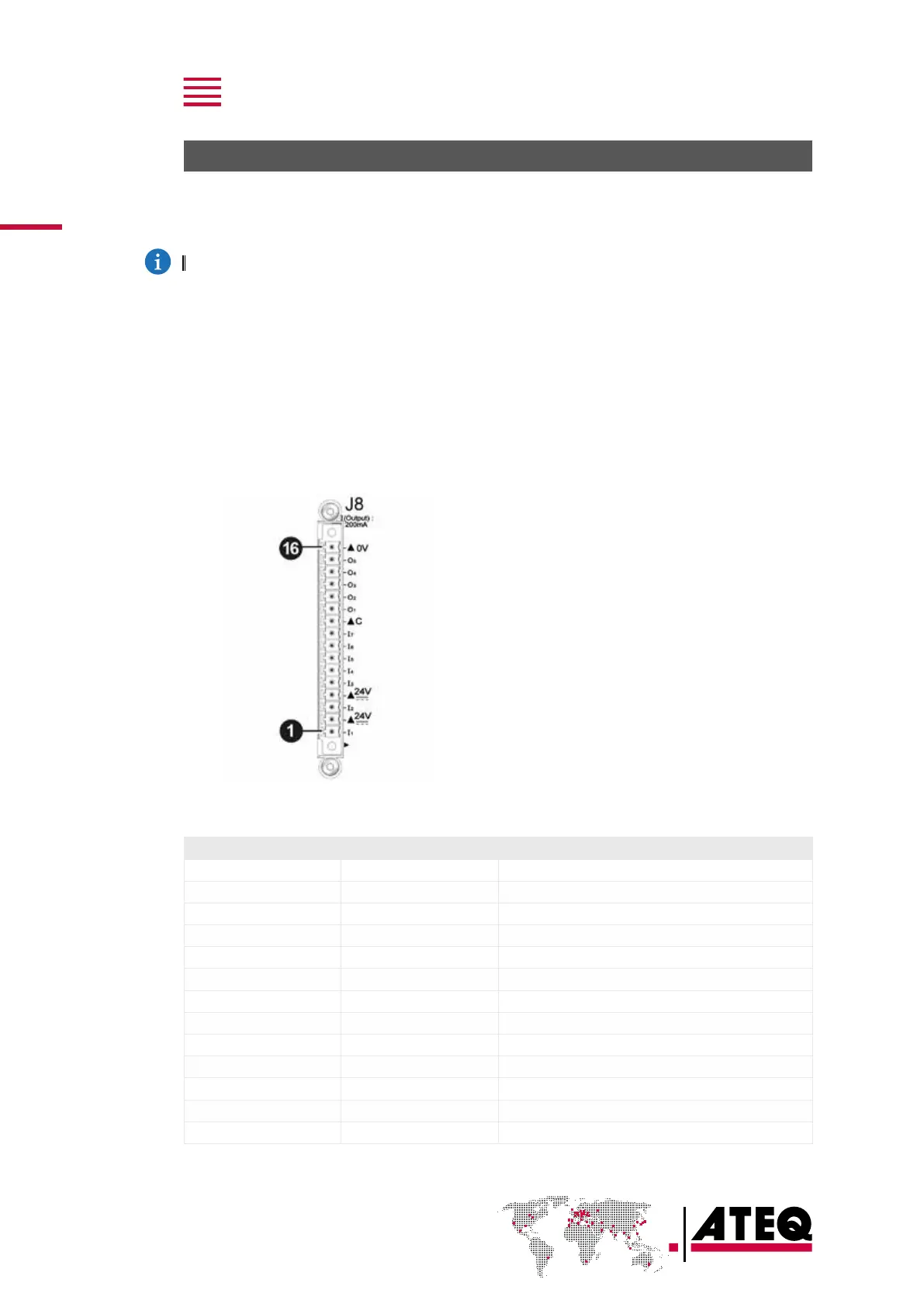

Relay board connector (J8) (option)
Characteristics
— Inputs
• Activation: + 24 V DC.
— Outputs
• Dry contacts
• 60 V AC / DC max - 200 mA max.
Pin number Inputs / outputs Description
1 Input 1 RESET
2 + 24 V DC Common
3 Input 2 START
4 + 24 V DC Common
5 Input 3 Program selection
6 Input 4 Program selection
7 Input 5 Program selection
8 Input 6 Program selection
9 Input 7 Program selection (programmable input)
10 Output Common floating output
11 Output Pass part
12 Output Test fail part
13 Output Reference fail part
