ATEQ F28+ User Manual

QSG_F28+.394.00_EN_01 / 2019-02-25
17 / 42
Pin number Inputs / outputs Description
14 Output Warning
15 Output End of cycle
16 0 V Ground

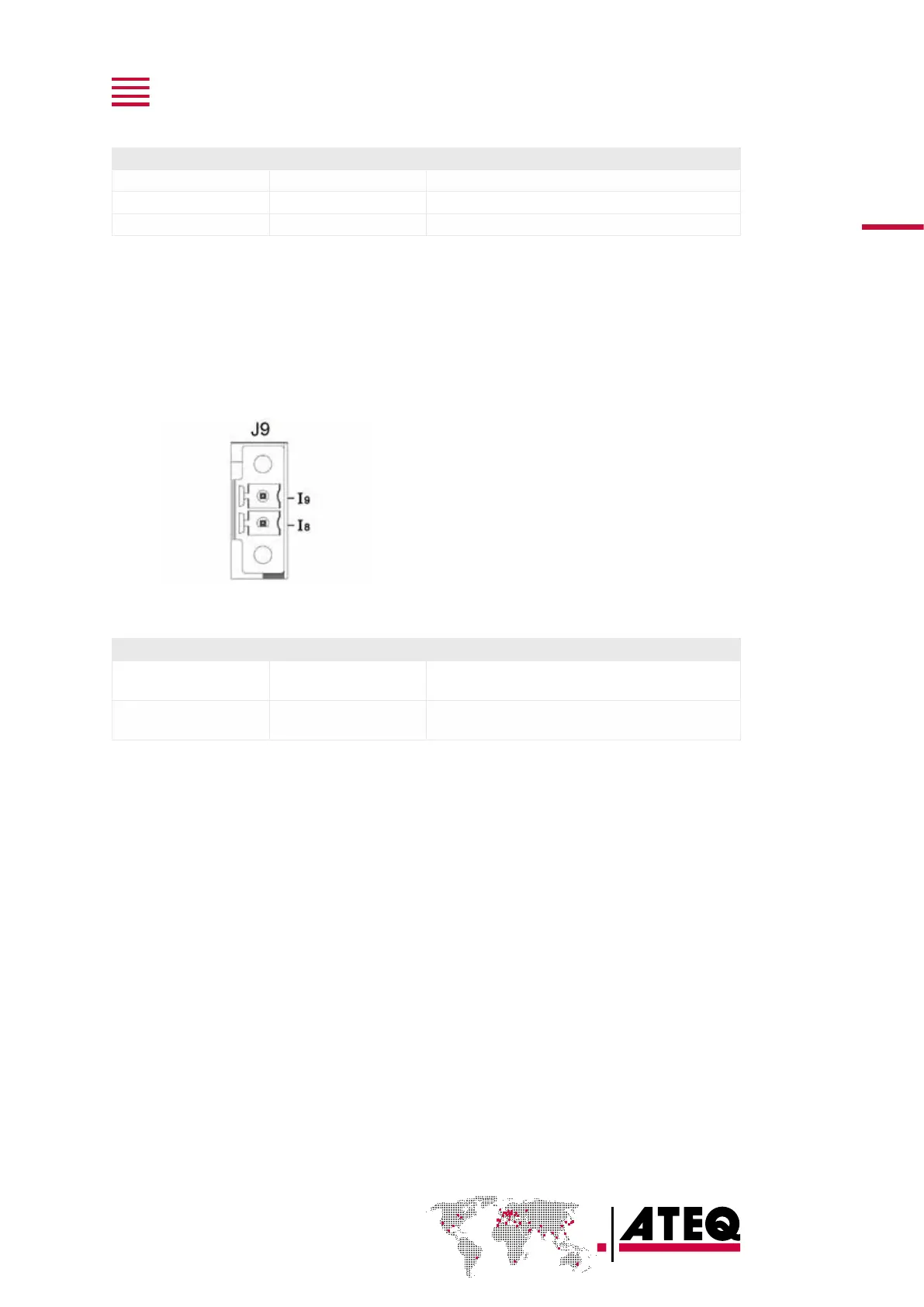

Program selection extension connector (J9)
The J9 connector is an extension of the J8 connector that enables the selection of128programs.
Characteristics
— Inputs
• Activation: + 24 V DC.
Pin number Inputs/outputs Description
I8 Input 8 Program selection from 33 to 64 (programmable
input)
I9 Input 9 Program selection from 65 to 128 (programmable
input)
