ATEQ F28+ User Manual

QSG_F28+.394.00_EN_01 / 2019-02-25
33 / 42

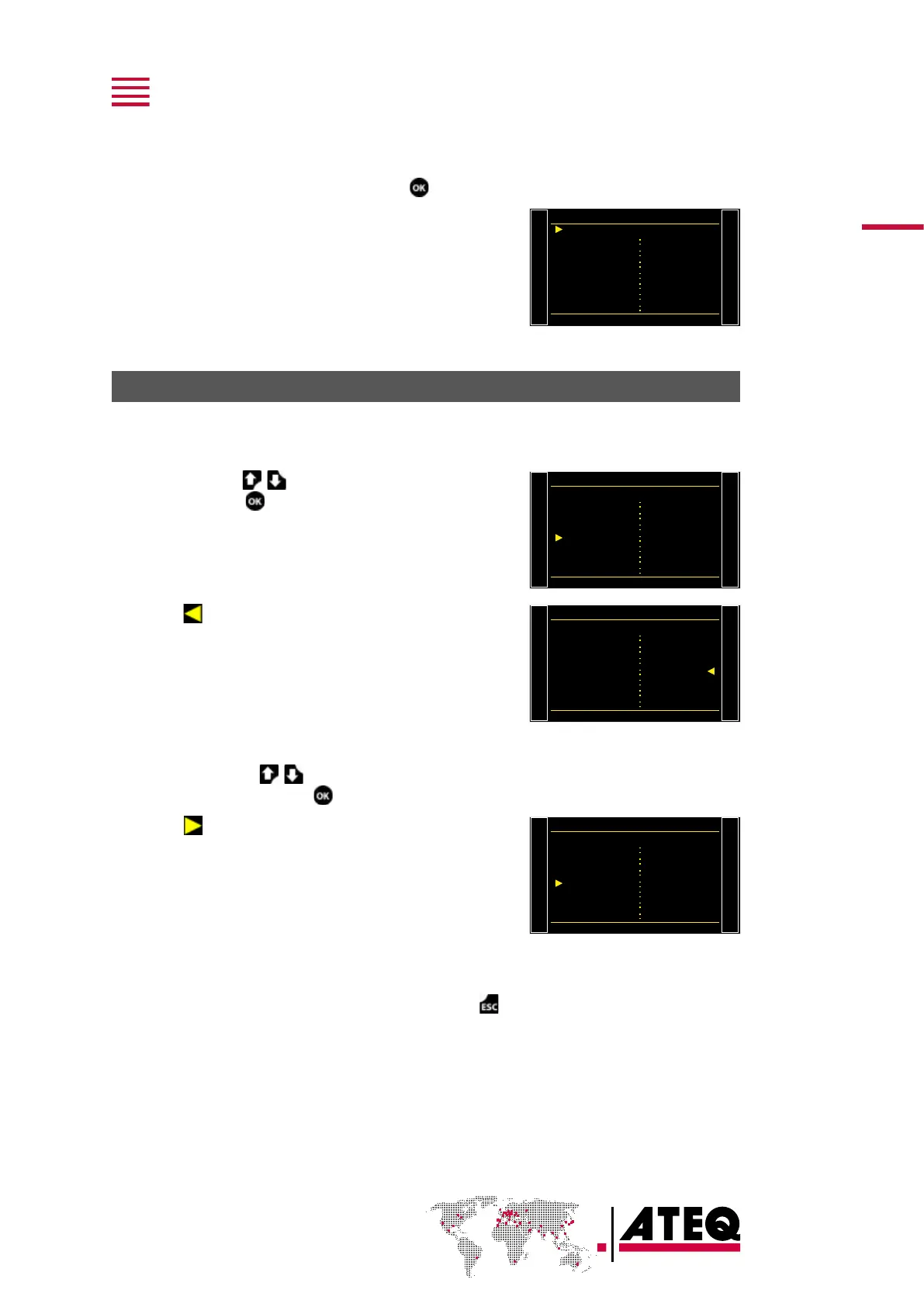

CONFIGURING THE ASSOCIATED MEASUREMENTS
3. Select a measurement type and press .
The parameters of the selected measurement type are
displayed.
4. Define the measurement cycle parameters.
See: Modifying a parameter.
TYPE : LEAK TEST
COUPL. A 0.0 s
2.0 s
2.0 s
2.0 s
1.0 s
bar
5.00
FILL TIME
STAB TIME
TEST TIME
DUMP TIME
Press. UNIT
Max FILL
PARAM / Pr 001
MODIFYING A PARAMETER
Use this procedure to complete the test program setup.
On the PARAMETERS screen of the program (see: Preparing a program):
1. Press up/down to select the parameter to
modify, and press .
TYPE : LEAK TEST
COUPL. A 0.0 s
2.0 s
2.0 s
2.0 s
1.0 s
bar
5.00
FILL TIME
STAB TIME
TEST TIME
DUMP TIME
Press. UNIT
Max FILL
PARAM / Pr 001
An arrow is displayed on the right of the parameter
being modified.
TYPE : LEAK TEST
COUPL. A 0.0 s
2.0 s
2.0 s
2.0 s
1.0 s
bar
5.00
FILL TIME
STAB TIME
TEST TIME
DUMP TIME
Press. UNIT
Max FILL
PARAM / Pr 001
2. Use the up/down keys to modify the
parameter value, and press to validate.
The arrow returns to the left of the modified parameter.
TYPE : LEAK TEST
COUPL. A 0.0 s
2.0 s
2.0 s
1.0 s
1.0 s
bar
5.00
FILL TIME
STAB TIME
TEST TIME
DUMP TIME
Press. UNIT
Max FILL
PARAM / Pr 001
3. Repeat these steps until all parameters are set.
4. To return to the MAIN MENU screen, press Esc
as many times as necessary.
