ATEQ F28+ User Manual

QSG_F28+.394.00_EN_01 / 2019-02-25
20 / 42
PNEUMATIC CONNECTORS
Pneumatic connectors used to connect the part under test are located on the back panel
of the device, except for pneumatic supply.

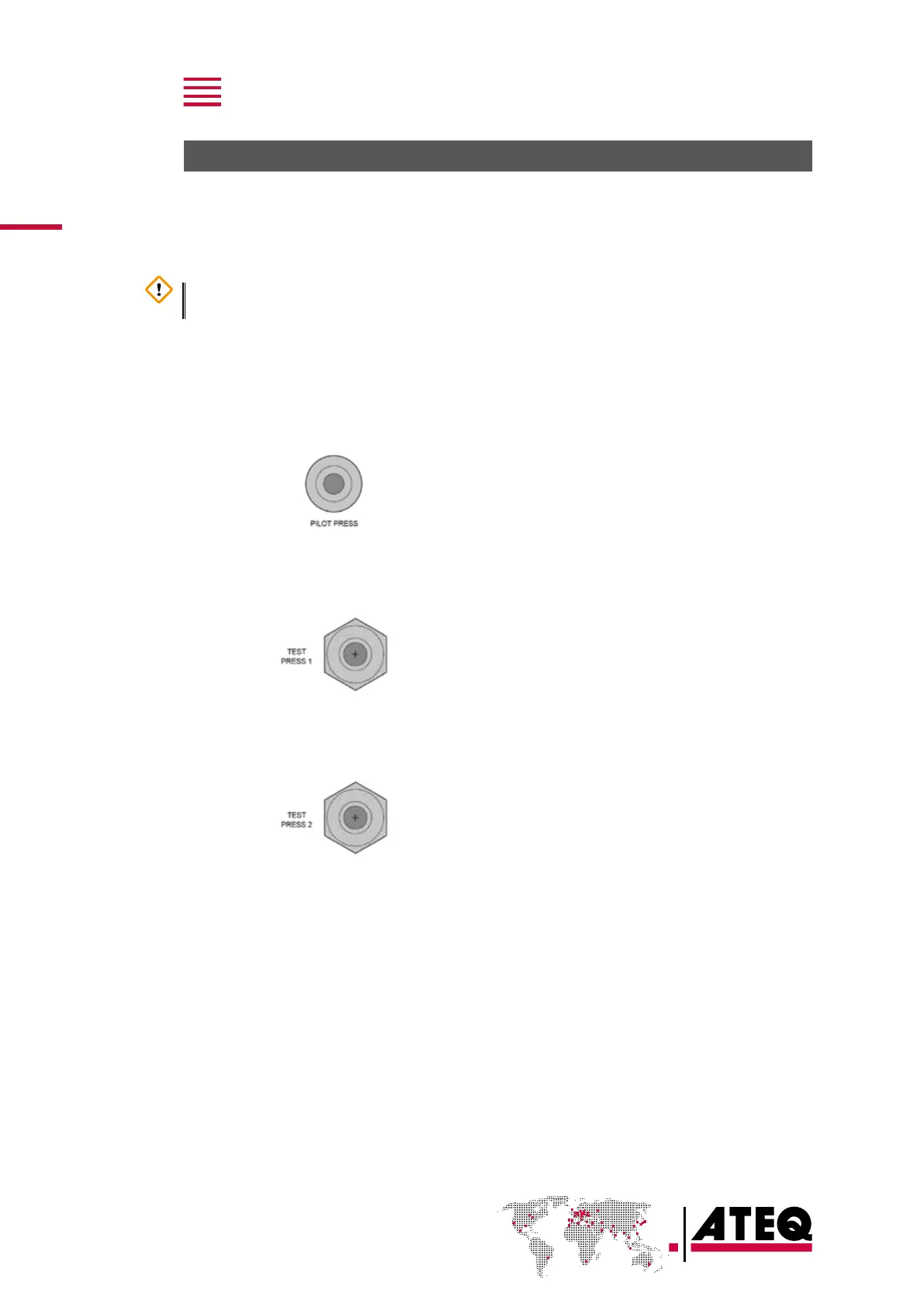

Pneumatic supply (on front panel)
The pneumatic supply has to meet specific requirements recommended by ATEQ. Refer to
Good practices and safety instructions section.
The air is supplied via the 0.6 MPa (87 PSI) valve air supply input (1).
Two other pneumatic inputs (2) and (3) are available for an external regulated air supply
(option).
0.6 MPa (87 PSI) ± 15% valve air supply input (1)
Regulated air pressure input 1 (option) (2)
External regulation: test pressure 1:
— max = sensor full scale
Internal electronic regulation:
— max = regulator full scale
Regulated air pressure input 2 (option) (3)
External regulation: test pressure 2:
— max = sensor full scale
Internal electronic regulation:
— max = regulator full scale
