ATEQ F28+ User Manual

QSG_F28+.394.00_EN_01 / 2019-02-25
24 / 42

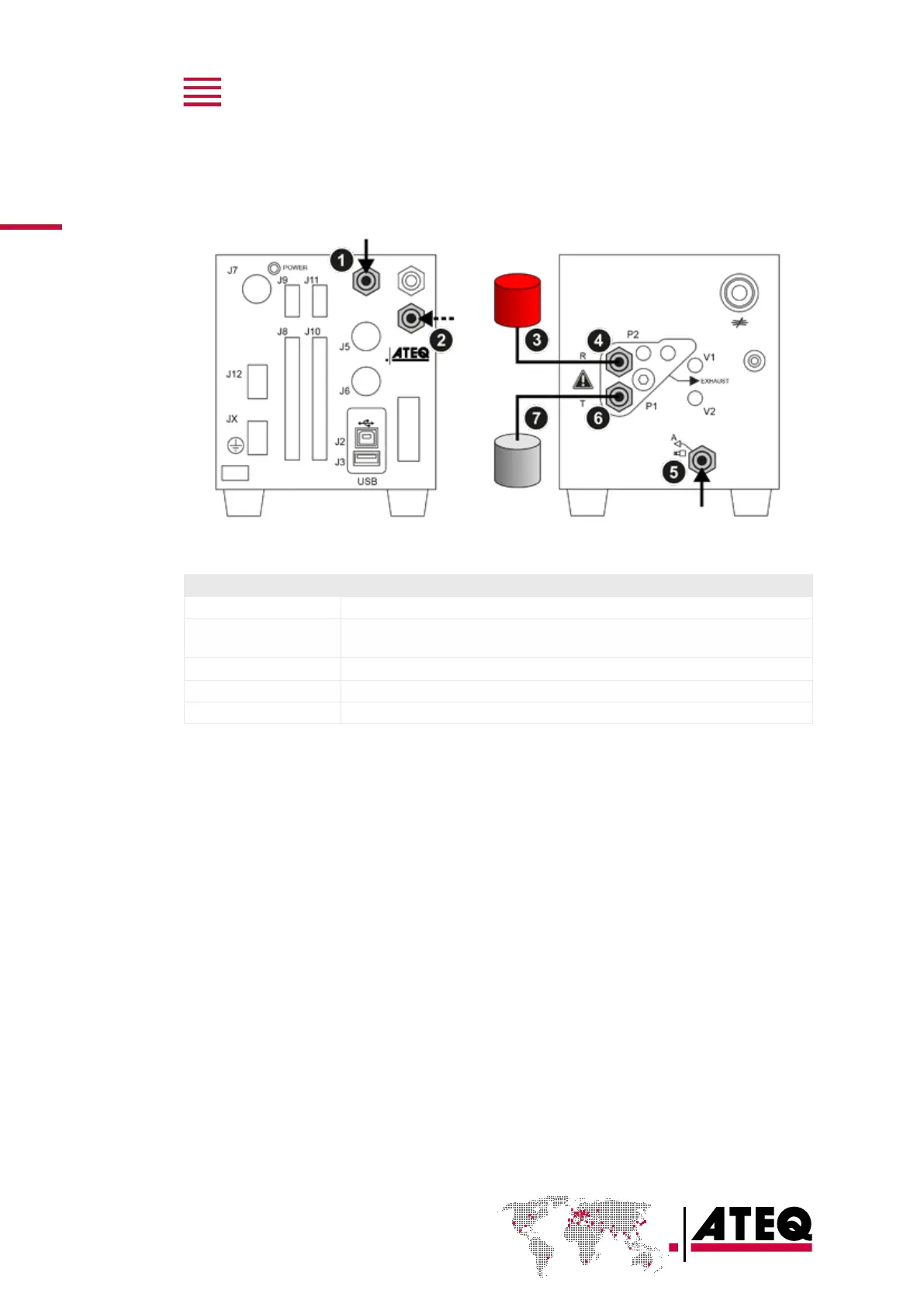

Direct mode - Test with internal regulator
From vacuum until 0.5 MPa (72.5 PSI)
Connections
Connection Option / description
Air supply to1
Connection of the air supply to the valve air supply input
Vacuum supply to2
Connection of the vacuum supply to the regulated air pressure input 2
(option)
4 to3
Connection of the reference output to the reference part
6 to7
Connection of the test output to the part under test
5
Connection to pneumatic coupler
