ATEQ F28+ User Manual

QSG_F28+.394.00_EN_01 / 2019-02-25
25 / 42
Direct mode - Test with internal regulator
From 0.6 MPa (87 PSI) until 2 MPa (290 PSI)

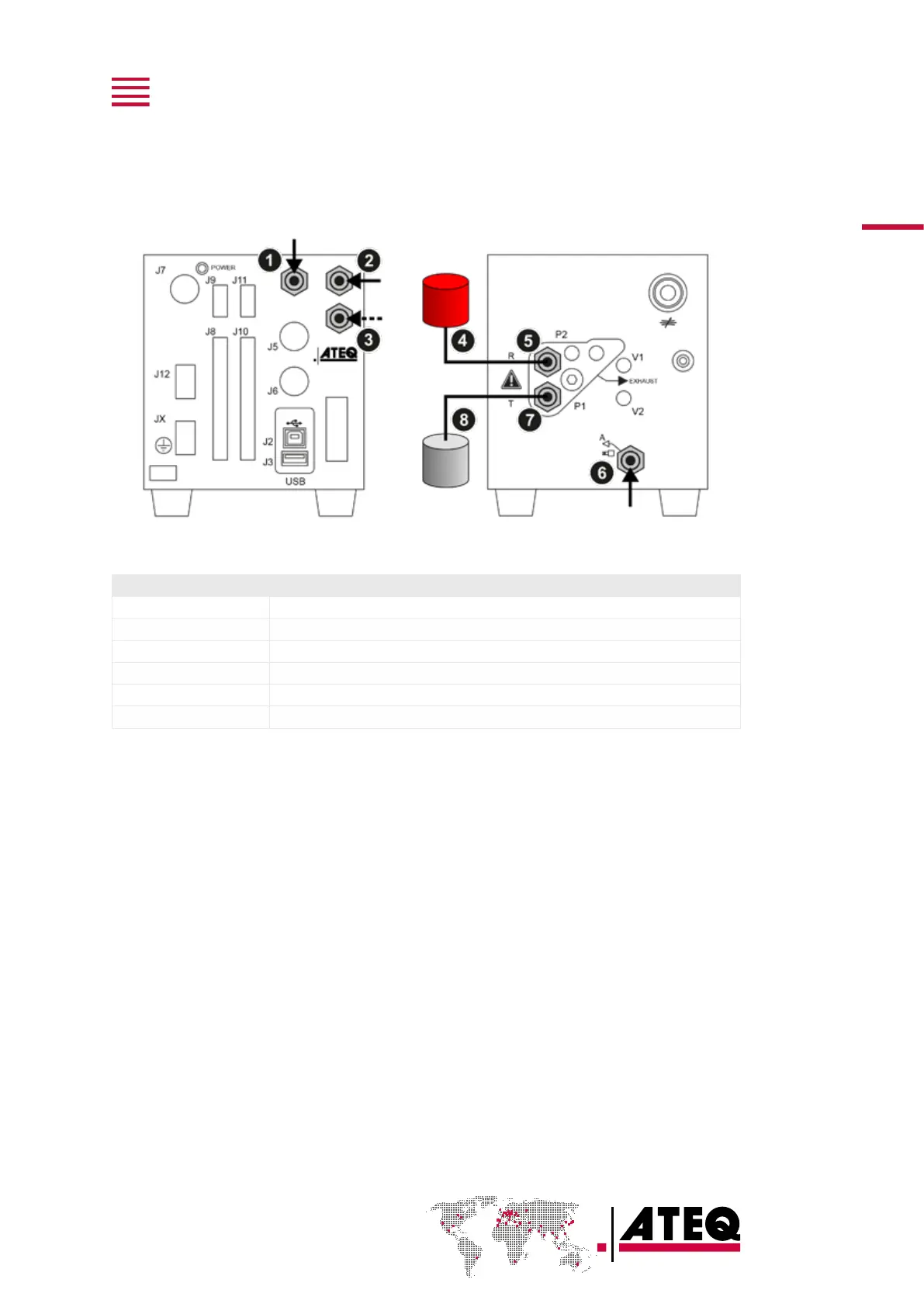

Connections
Connection Option / description
Air supply to1
Connection of the air supply to the valve air supply input
Air supply to2
Connection of the air supply to the internal pressure regulator
Vacuum supply to3
Connection of the air supply to the internal vacuum regulator
5 to4
Connection of the reference output to the reference part
7 to8
Connection of the test output to the part under test
6
Connection to pneumatic coupler
