ATEQ F28+ User Manual

QSG_F28+.394.00_EN_01 / 2019-02-25
26 / 42
Direct mode - Option test check by pressure drop
Maximum pressure: 0.4 MPa (58 PSI)

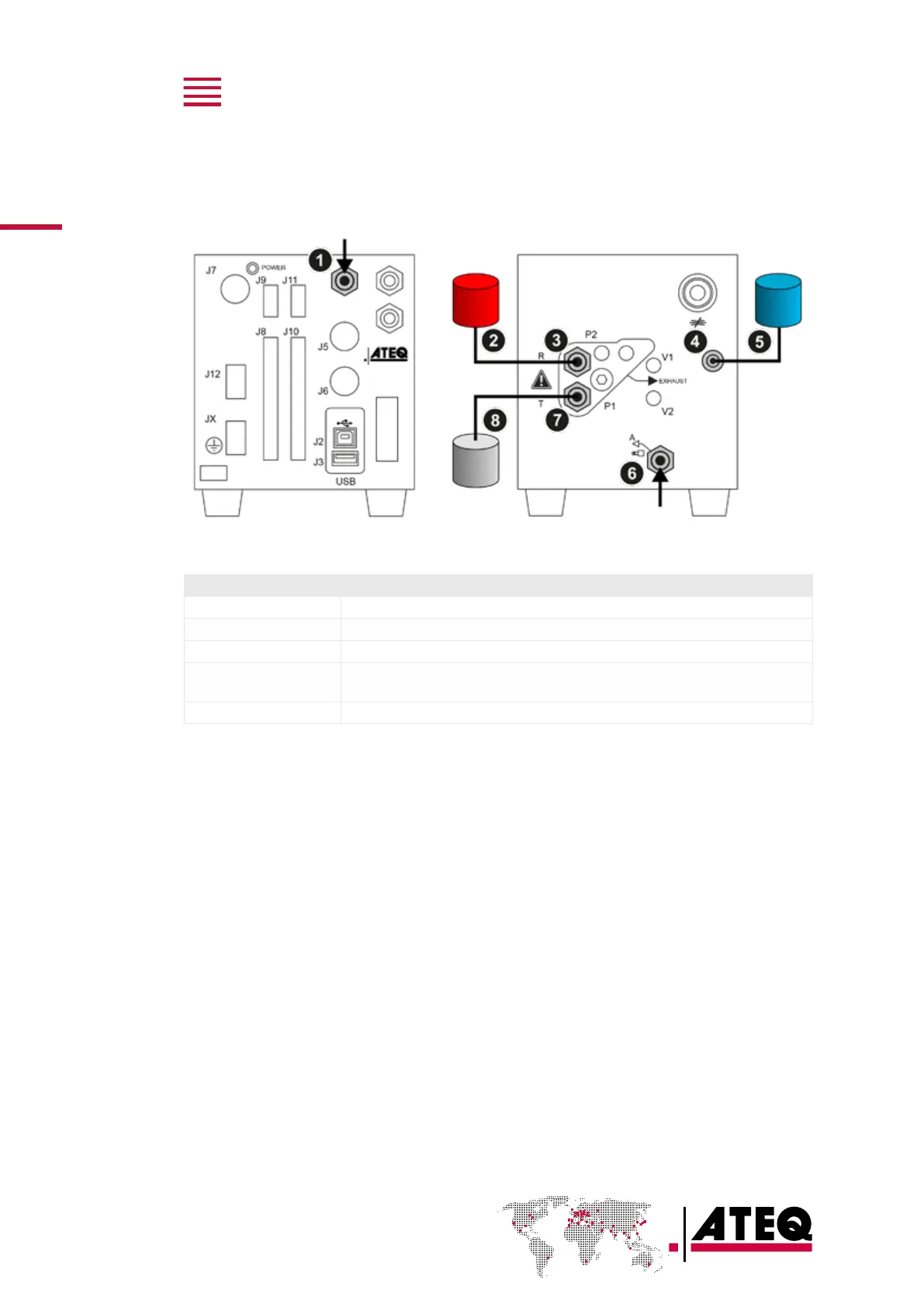

Connections
Connection Option / description
Air supply to1
Connection of the air supply to the valve air supply input
3 to2
Connection of the reference output to the reference part
7 to8
Connection of the test output to the part under test
4 to5
Connection of the external volume output to an additional volume, if
necessary (option)
6
Connection to pneumatic coupler
