ATEQ F28+ User Manual

QSG_F28+.394.00_EN_01 / 2019-02-25
27 / 42

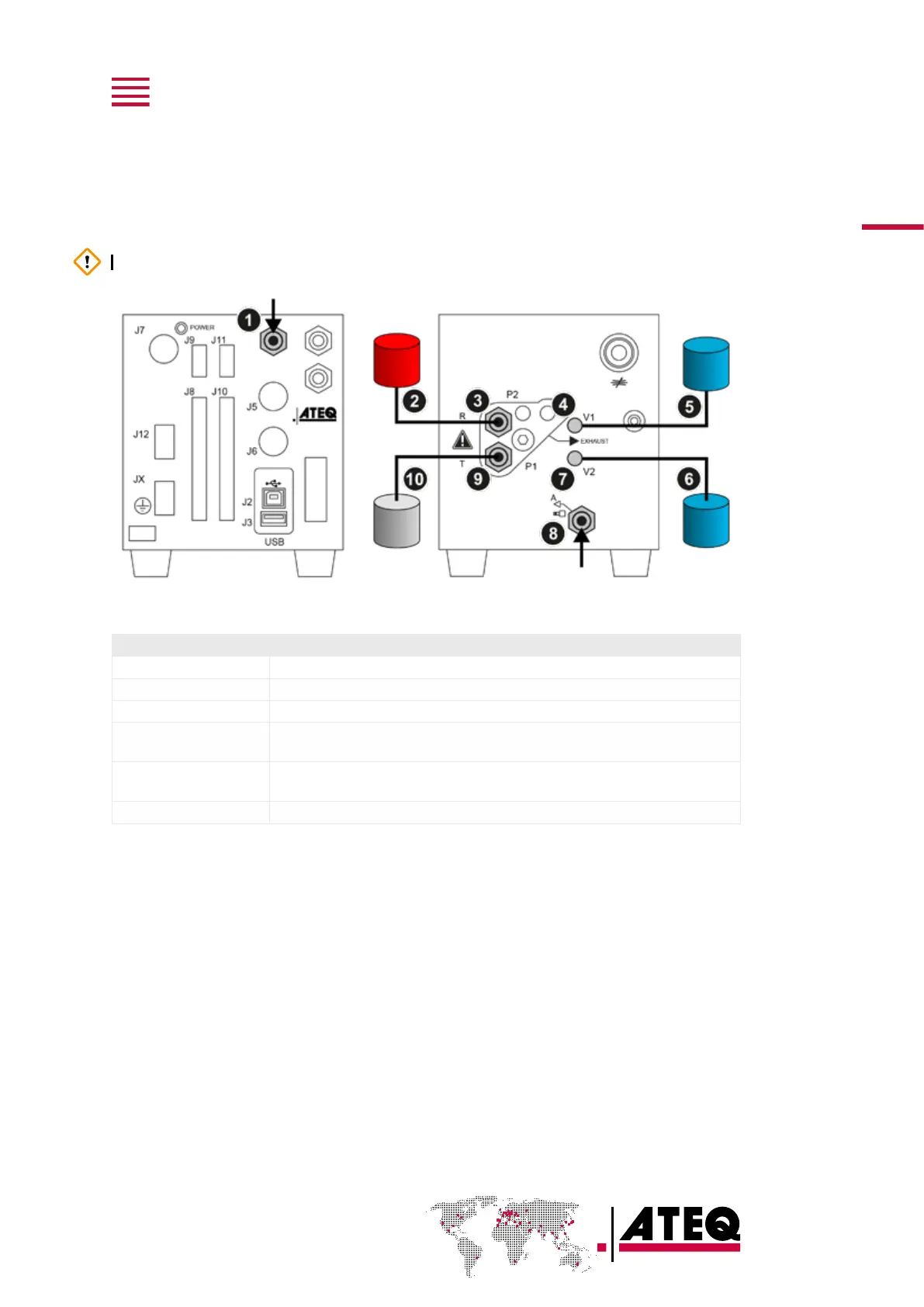

Direct mode - Sealed part differential volume test
Maximum pressure: 1 MPa (145 PSI)
This configuration can be used for test of small test part volumes.
Protect volumes and pipes from air blowing and temperature variations.
Connections
Connection Option / description
Air supply to1
Connection of the air supply to the valve air supply input
3 to2
Connection of the reference output to the reference part
9 to10
Connection of the test output to the part under test
4 to5
Connection of the volume output V1 to an additional volume, if necessary
(option)
7 to6
Connection of the volume output V2 to an additional volume, if necessary
(option)
6
Connection to pneumatic coupler
