ATEQ F5200 User Manual

Quick start manual - F5200
MR-F5200B-U Quick start manual ATEQ F5200 Page 2/17
PREAMBLE
1. DEFINITION OF THE ATEQ F5200

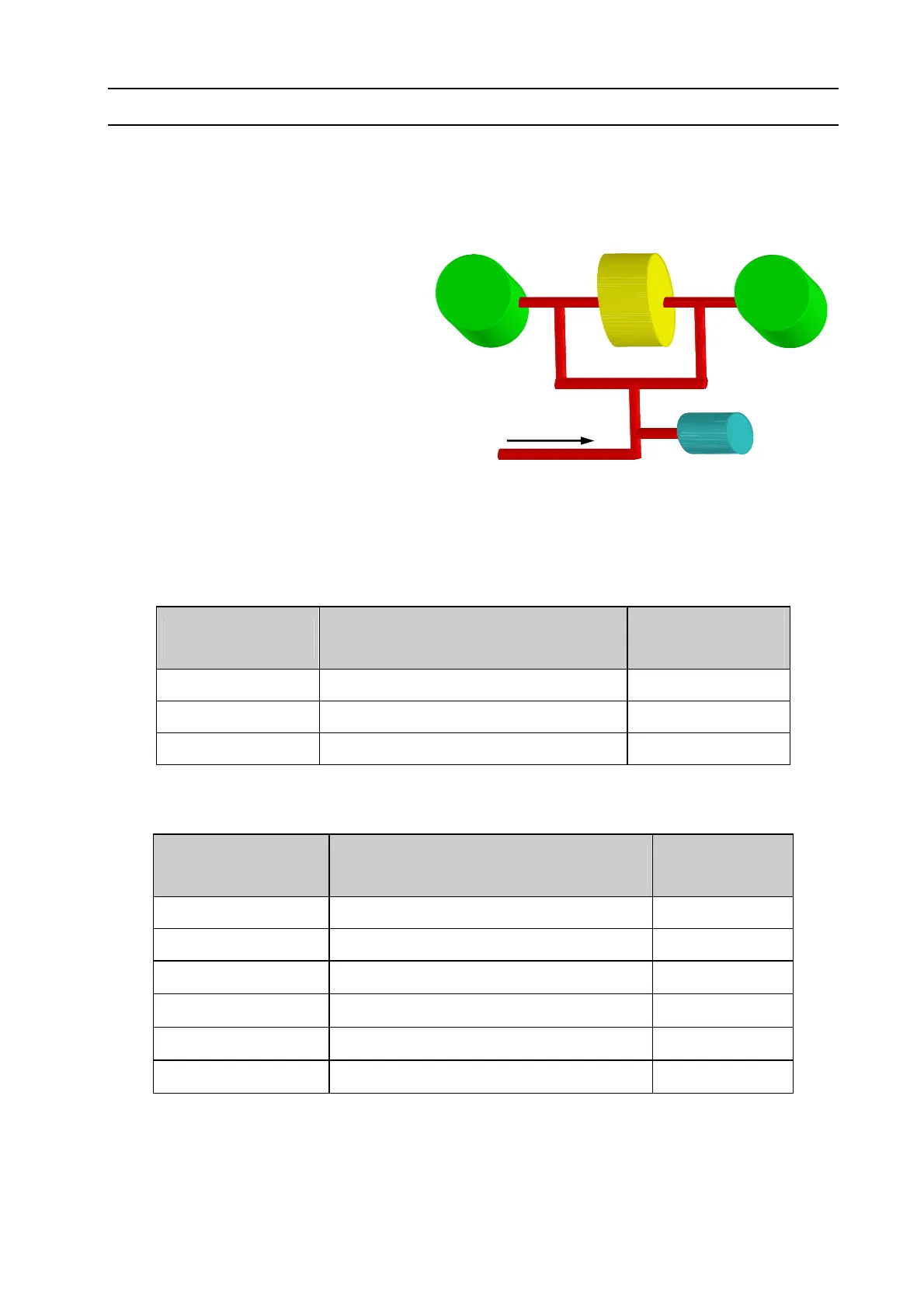

The ATEQ F5200 is a compact
air/air leak detector used to test the
air-tightness of parts. The method
used is based on the measurement
of a small variation or drop in
differential pressure between the test
and reference parts, when both are
filled to an identical pressure.
TEST
PART
REFERENCE
PART
DIFFERENTIAL
SENSOR
PIEZO
SENSOR
TEST
PRESSURE
2. MEASUREMENT CHARACTERISTICS
2.1. PRESSURE DROP MEASUREMENT
RANGE ACCURACY
RESOLUTION
Maximum
0 – 50 Pa +/- (2,5% of the pressure + 1 Pa) 0,01 Pa
0 – 500 Pa +/- (2,5% of the pressure + 1 Pa) 0,1 Pa
0 – 5000 Pa +/- (2,5% of the pressure + 10 Pa) 1 Pa
2.2. TEST PRESSURE MEASUREMENT
RANGE ACCURACY
RESOLUTION
Maximum
F.S. = 75 mbar* +/- (1,5% of the pressure+ 0,2 hPa) 0,1 % F.S.
F.S. < 0,3 bar +/- (1,5% of the pressure + 1 hPa) 0,1 % F.S.
0,3 ≤ F.S. ≤ 1 bar
+/- (1,5% of the pressure + 3 hPa) 0,1 % F.S.
1 < F.S. ≤ 5 bar
+/- (1,5% of the pressure + 7.5 hPa) 0,1 % F.S.
5 < F.S. ≤ 10 bar
+/- (1,5% of the pressure + 15 hPa) 0,1 % F.S.
10 < F.S. ≤ 20 bar
+/- (1,5% of the pressure + 30 hPa) 0,1 % F.S.
* Specific (relative)
F.S. = Full scale.
