MR-F5200B-U Quick start manual ATEQ F5200 Page 7/17

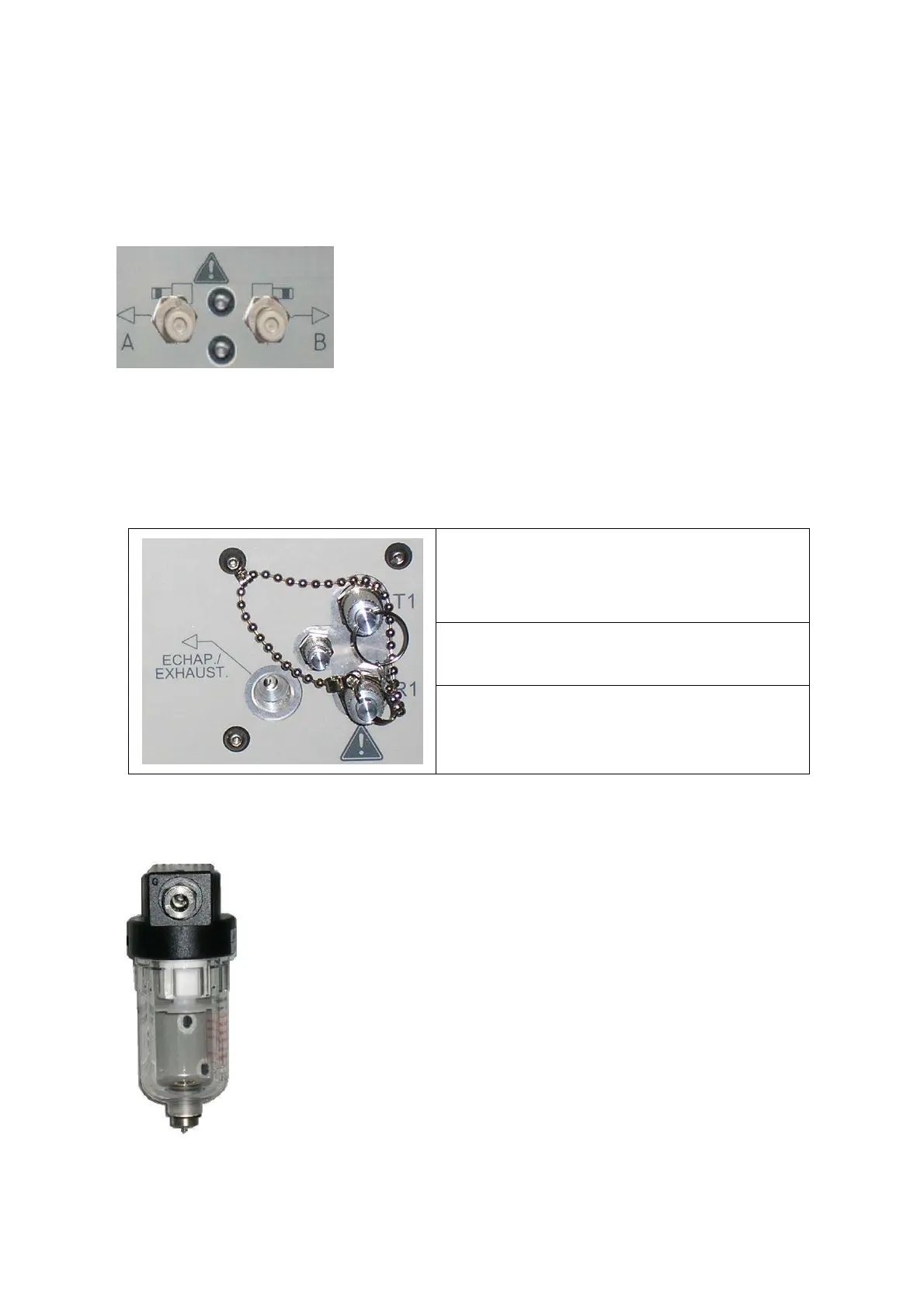

3. PNEUMATICS CONNECTORS
The automatics connectors or installed on the rear side.
3.1. AUTOMATIC CONNECTOR A AND B (OPTION)
To drive pneumatics caps.
3.2. PNEUMATICS TEST OUTPUTS
These outputs enable parts to be connected (test, reference). The pressurization output
is used for the addition of ATEQ accessories (Y valve).
Inputs / Outputs on the rear side of the F5200:
Test output T
Pressurization output
Reference output R
4. PNEUMATIC SUPPLY
Air supply is via the filter located on the rear panel of the
instrument.
The air must be clean and dry.
The supply pressure must always be between 4 and 8 bar (400
kPa and 800 kPa).
