Quick start manual - F5200
MR-F5200B-U Quick start manual ATEQ F5200 Page 4/17
INSTALLATION
See the manuals CDROM for further information.

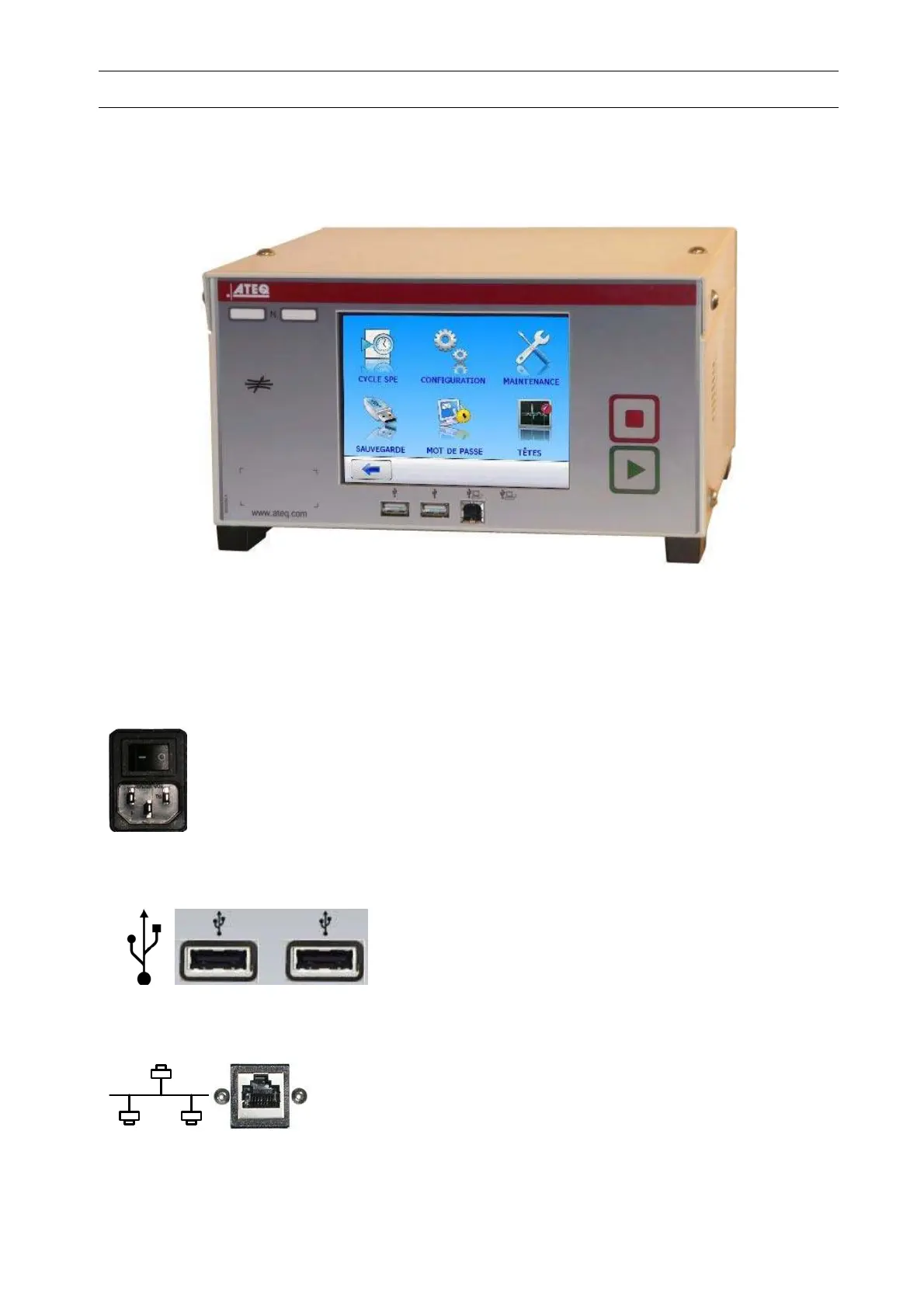

1. APPEARANCE OF THE ATEQ F5200
2. ELECTRICS CONNECTORS
2.1. ON/OFF SWITCH
The ATEQ F5200 is running under a voltage between 100 and 240 V AC.
I : ON / O : OFF.
2.2. USB CONNECTOR (FRONT FACE)
Allows the connection of various elements USB
compatible (mouse, keyboard, memory etc.).
2.3. J9 ETHERNET CONNECTOR
Ethernet connector for connecting the device into an
Ethernet network (TCP / IP protocol).
